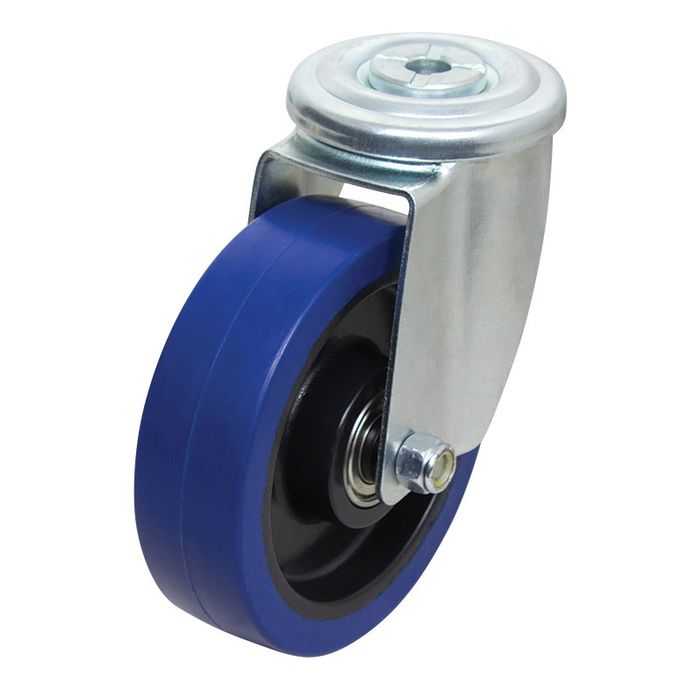

Richmond - 300 Series Bolt Hole Swivel Castor

125mm Reb Rubber Wheel 200kg
Stock Code:
S5214
$58.63 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
50 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

125mm Bolt Hole 300 Series Castor (S5214)

Wheel Diameter: 125mm

Castor Frame Type: Swivel

Wheel Width: 35mm

Wheel Type: Rebound Rubber

Wheel Code: RR5077

Wheel Bearing Type: Ball Bearing

Castor Height: 157mm

Swivel Radius: 112mm

Bolt Hole Size: 12mm



Maximum Load Capacity: 200kg

Recommended Load Capacity: 150kg

Richmond’s premier industrial bolt hole castor designed with strengthen forks and now a larger rolling diameter suitable for loads up to 300kg, the 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt and the vast wheel combinations available with this series provides endless mobility for industrial environments and trolleys in demanding applications.

The S5214 manufactured by Richmond is a swivel frame castor and features a rebound rubber wheel. This swivel castor is one of our 300 series bolt hole range and can safely take loads up to 200kg. The S5214 uses ball bearings for wheel rotation and is mounted with a bolt. The swivel frame design of this castor allows full swivel rotation to enable steering. The rebound rubber wheel diameter is 125mm, the wheel width is 35mm and you can order separately (Part Number: RR5077). To order this castor with a brake, search for S5214B.

Details

  • Thread Size:
    M12 Hole
  • Material:
    Poly - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Bolt Hole
  • Size:
    200 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Zinc Plated
