Richmond - Stainless Steel Elite Plate Swivel Cast

125mm Nylon Wheel 100kg with Brake
Stock Code:
S5588B
$101.68 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

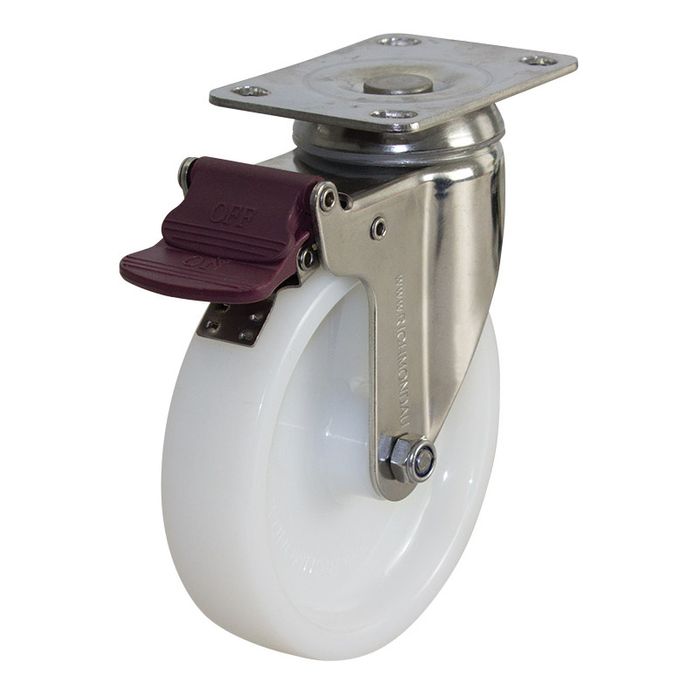

125mm Nylon Wheel 100kg Capacity Castor (S5588B)

Wheel Diameter: 125mm

Castor Frame Type: Swivel with Brake

Wheel Width: 30mm

Wheel Type: Nylon

Wheel Code: NY5517

Wheel Bearing Type: Plain Bore

Castor Height: 161mm

Swivel Radius: 106mm

Maximum Load Capacity: 100kg

Recommended Load Capacity: 80kg

Richmond’s Stainless Steel Elite castors are manufactured from Grade 304 stainless steel to provide uncompromised durability when hygiene and health are important, they are highly suited to medical or laboratory equipment. Featuring a stainless steel double ball race swivel head contributing to maintenance free life, fitted with an attractive stainless steel thread guard on the 100 and 125mm or plastic thread guards on the 75mm castors these castors can also be fitted to food carts being constantly moved through cool rooms and steamy kitchens and can be hose cleaned. A full range of round and square pintle options are available through your local Richmond store.

The S5588B by Richmond Wheel and Castor Co. is a swivel frame castor and uses a nylon wheel. This swivel castor is in our stainless steel elite plate range and can hold loads up to 100kg. The S5588B wheel is fitted with plain bearings and is mounted with the baseplate. The swivel frame allows full swivel rotation to enable steering. The overall nylon wheel diameter is 125mm, the wheel width is 30mm and can be ordered separately (NY5517). For the same castor without a brake, see S5588.

Details

  • Material:
    Nylon - White
  • Width:
    30 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 100 Kg - Stainless Elite Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    100 Kg
  • Diameter Outside:
    125 mm (5 inch)
  • Style:
    Stainless Steel
