Richmond - 300 Series Plate Swivel Castor

150mm Poly Nylon Wheel 300kg with Brake
Stock Code:
S6044B
$114.27 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

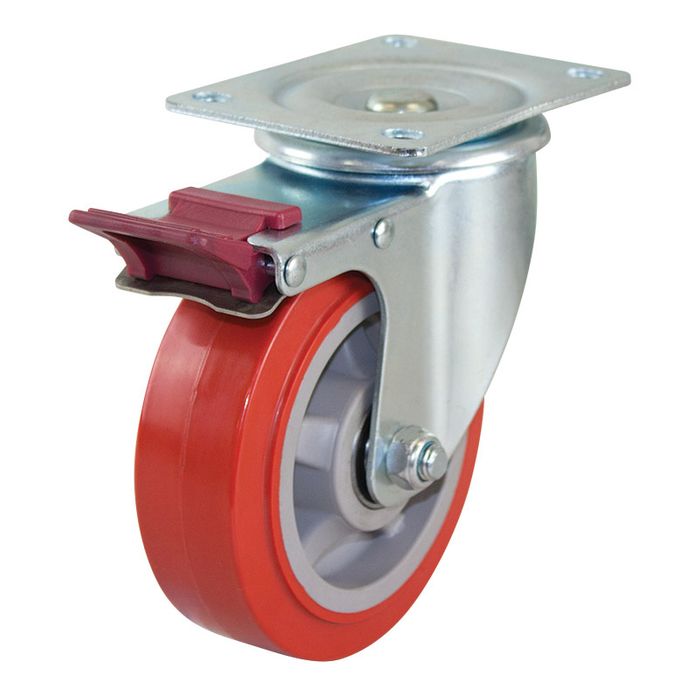

150mm Poly Nylon Wheel 300kg Capacity Castor (S6044B)

Wheel Diameter: 150mm

Castor Frame Type: Swivel with Brake

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU6071

Wheel Bearing Type: Ball Bearing

Castor Height: 187mm

Swivel Radius: 170mm

Maximum Load Capacity: 300kg

Recommended Load Capacity: 225kg

Meeting and exceeding all performance standards due to a higher load bearing capacity the 300 Series has a wide range of uses.A sturdy pressed metal castor with a variety of wheel options, Richmond can help identify the correct wheel for your application and environment. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases, transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series

The S6044B from Richmond Wheel and Castor Co. is a swivel frame castor and uses a polyurethane wheel. This swivel castor is part of our 300 series plate range and has a top load capacity of 300kg. The S6044B is assembled with ball bearings on the castors axle and is baseplate mount. This castors swivel frame allows for full 360° swivel rotation. The diameter of the polyurethane wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU6071). To order this castor without a brake, search for S6044.

Details

  • Material:
    Poly - Red / Nylon
  • Width:
    50 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    300 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
