Richmond - 1000 Series Swivel Castor

150mm Poly Ci Wheel 900kg
Stock Code:
S6338SLB
$340.78 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

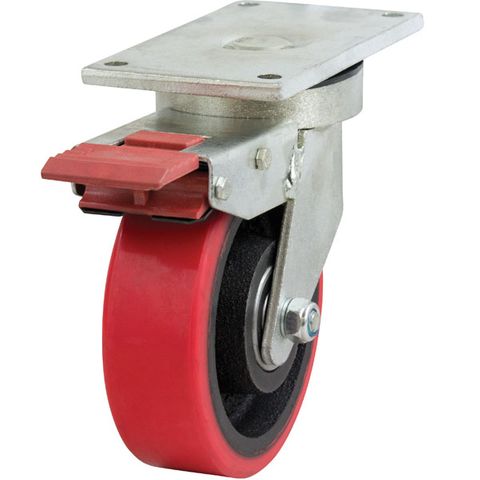

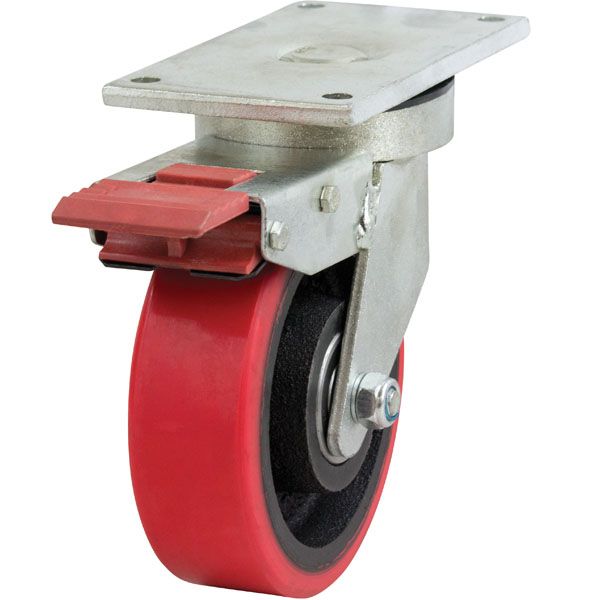

150mm Poly Ci Wheel 900Kg Capacity Castor (S6338SLB)

Wheel Diameter: 150mm

Castor Frame Type: Swivel with Swivel Lock and Brake

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU659

Wheel Bearing Type: Ball Bearing

Castor Height: 194mm

Swivel Radius: 174mm

Maximum Load Capacity: 900kg

1000kg load rating provides an economical alternative to heavier load bearing castors. The ability to be towed at a 6kph by tugs and tractors enables Richmond’s 1000 Series to be used on mobile platforms, aviation trolleys, automotive assembly lines and production manufacturing plants. The polyurethane cast iron wheel type with a rolling diameter of up to 300mm not only enhances maneuverability but decreases rolling resistance. Like most Richmond heavy duty castors, our 1000 series has a precision machined ball race and high tensile steel kingpin to withstand side impact loads.

The S6338SLB from Richmond is a swivel frame castor and uses a polyurethane tyred cast iron wheel. This swivel castor is part of our 1000 series range and can safely take loads up to 900kg. The S6338SLB wheel is fitted with ball bearings. The swivel frame of this castor allows the castor to swivel 360°. The diameter of the polyurethane tyred cast iron wheel is 150mm, the wheel width is 50mm and you can order separately (Part Number: PU659).

Details

  • Material:
    Poly - Red / Cast Iron
  • Width:
    50 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 1000 Kg - 1000 Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    900 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
