Richmond - Stainless Steel Excel Plate Swivel Cast

200mm Nylon Wheel 380kg
Stock Code:
S8140
$268.80 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

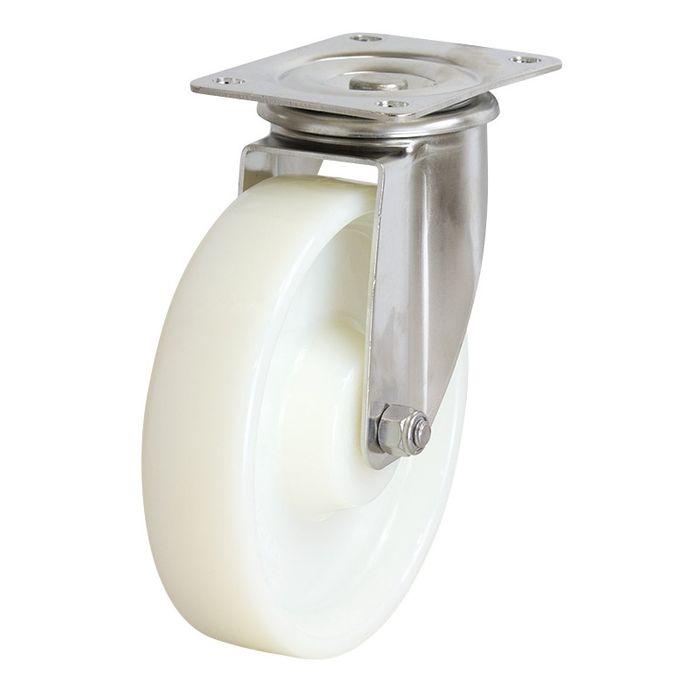

200mm Nylon Wheel 380kg Capacity Castor (S8140)

Wheel Diameter: 200mm

Castor Frame Type: Swivel

Wheel Width: 50mm

Wheel Type: Nylon

Wheel Code: NY802

Wheel Bearing Type: Stainless Steel Roller Bearing

Castor Height: 237mm

Swivel Radius: 156mm

Maximum Load Capacity: 380kg

Recommended Load Capacity: 350kg

Ideal for use in wet areas or where frequent wash down is necessary, such as food processing, handling or health industries in which corrosive conditions are common, Richmond offers a pressed stainless steel castor with unrivalled finish and performance. Richmond’s Stainless Steel Excel Plate castors features a swivel lock and brake and can be transported when assembled with a rebound polyurethane wheel. Further to the performance of this castor series high temperature wheel options are available for bakery and oven applications.

The S8140 from Richmond is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is one of our stainless steel excel plate range and has a maximum capacity of 380kg. The S8140 wheel is fitted with stainless steel roller bearings and is baseplate mount. The swivel frame design of this castor allows the load to be steered. The outside diameter of the nylon wheel is 200mm, the wheel width is 50mm and you can order separately (Part Number: NY802). This model can also be ordered with a brake (part number S8140B).

Details

  • Material:
    Nylon - White
  • Width:
    50 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 400 Kg - Stainless Excel Series
  • Type:
    Swivel - Plate
  • Size:
    380 Kg
  • Diameter Outside:
    200 mm (8 inch)
  • Style:
    Stainless Steel
