Richmond - 300 Series Bolt Swivel Castor

150mm Reb Rubber Wheel 225kg
Stock Code:
S6228B
$117.04 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

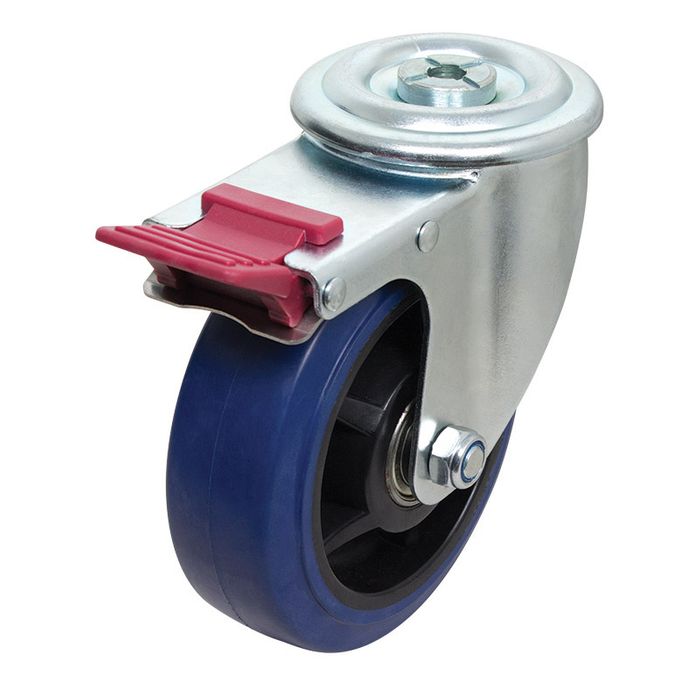

150mm Bolt Hole 300 Series Castor (S6228B)

Wheel Diameter: 150mm

Castor Frame Type: Swivel with Brake

Wheel Width: 45mm

Wheel Type: Rebound Rubber

Wheel Code: RR6677

Wheel Bearing Type: Ball Bearing

Castor Height: 181mm

Swivel Radius: 150mm

Bolt Hole Size: 12mm



Maximum Load Capacity: 225kg

Recommended Load Capacity: 200kg

Richmond’s premier industrial bolt hole castor designed with strengthen forks and now a larger rolling diameter suitable for loads up to 300kg, the 300 series is suitable for applications including warehouse trolleys, mobile racks and display equipment. The ability to add various fittings including pre fitted threaded inserts, solid drilled metal pintles, expanding pintles or a single bolt and the vast wheel combinations available with this series provides endless mobility for industrial environments and trolleys in demanding applications.



The S6228B from Richmond Wheel and Castor Co. is a swivel frame castor and uses a rebound rubber wheel. This swivel castor is part of our 300 series bolt hole range and can safely take loads up to 225kg. The S6228B is assembled with ball bearings on the castors axle and is bolt mounted. This castors swivel frame permits the load to be steered. The rebound rubber wheel diameter is 150mm, the wheel width is 45mm and you can order separately (Part Number: RR6677). For the same castor without a brake, see S6228.

Details

  • Thread Size:
    M12 Hole
  • Material:
    Rubber - Blue / Nylon
  • Width:
    45 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    225 Kg
  • Diameter Outside:
    150 mm (6 inch)
  • Style:
    Zinc Plated
