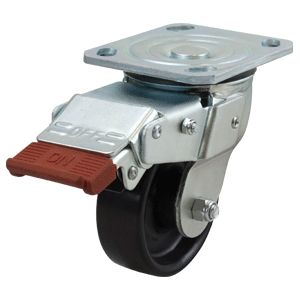

Richmond - Heavy Industrial Swivel Castor

100mm Nylon Wheel 300kg with Brake
Stock Code:
S4433SLB
$75.26 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
156 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

100mm Nylon Wheel 300kg Capacity Castor (S4433SLB)

Wheel Diameter: 100mm

Wheel Width: 35mm

Wheel Type: Nylon

Wheel Code: NY401

Wheel Bearing Type: Plain Bore

Castor Height: 142mm

Swivel Radius: 145mm

Maximum Load Capacity: 300kg

Recommended Load Capacity: 200kg

Richmond Heavy Industrial Series castor has been developed to meet the exacting demands of customers wanting castors capable of being transported long distances. Logistics, manufacturing, display and exhibition services are just some of the common businesses relying on our heavy industrial series castors daily. Zinc plated to provide corrosion resistance, a grease nipple to maintain smooth operation and an industry leading swivel lock and brake design all combined with a 6mm baseplate thickness and welded forks that provide uncompromised strength and resistance to flexing.

The 100mm Nylon Wheel Richmond Castor – S4433SLB is in our huge series of industrial castors. The wheel is supplied with a Plain Bearing and the wheel diameter is 100mm (4″). Further information on the Nylon wheel can be found here. The maximum load capacity of this heavy duty industrial castor is 300kg. The unit is also fitted with a swivel lock to prevent the swivel from rotating. Swivel castors such as this one allow full swivel rotation of the wheel. The S4433SLB is fitted with a brake. For the model without a brake click here.

Details

  • Material:
    Nylon - Black
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 500 Kg - Heavy Industrial Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    300 Kg
  • Diameter Outside:
    100 mm (4 inch)
  • Style:
    Zinc Plated
