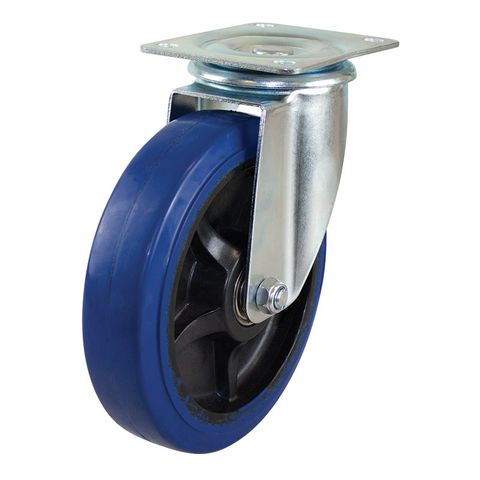

Richmond - 300 Series Plate Swivel Castor

200mm Reb Rubber Wheel 250kg
Stock Code:
S8042
$117.04 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

200mm Reb Rubber Wheel 250kg Capacity Castor (S8042)

Wheel Diameter: 200mm

Castor Frame Type: Swivel

Wheel Width: 45mm

Wheel Type: Rebound Rubber

Wheel Code: RR8871

Wheel Bearing Type: Ball Bearing

Castor Height: 237mm

Swivel Radius: 156mm

Maximum Load Capacity: 250kg

Recommended Load Capacity: 225kg

Meeting and exceeding all performance standards due to a higher load bearing capacity the 300 Series has a wide range of uses.A sturdy pressed metal castor with a variety of wheel options, Richmond can help identify the correct wheel for your application and environment. A nylon wheel in a 300 series is most common for industrial and trolley applications, a rebound rubber wheel is ideal for road cases, transportable crates whilst a poly nylon wheel is best suited to undercover and showroom displays. Cast Iron, Poly Cast Iron and Aluminium wheels are also available with this series

The S8042 manufactured by Richmond Wheel and Castor Co. is a swivel frame castor and has a rebound rubber wheel. This swivel castor is part of our 300 series plate range and can hold loads up to 250kg. The S8042 uses ball bearings for wheel rotation and is plate mount. This castors swivel frame allows for full 360° swivel rotation. The overall rebound rubber wheel diameter is 200mm, the wheel width is 45mm and you can order separately (Part Number: RR8871). To order this castor with a brake, search for S8042B.



Details

  • Material:
    Rubber - Blue / Nylon
  • Width:
    45 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Plate
  • Size:
    250 Kg
  • Diameter Outside:
    200 mm (8 inch)
  • Style:
    Zinc Plated
