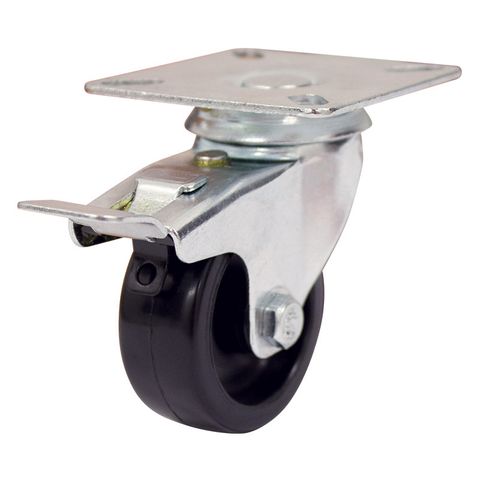

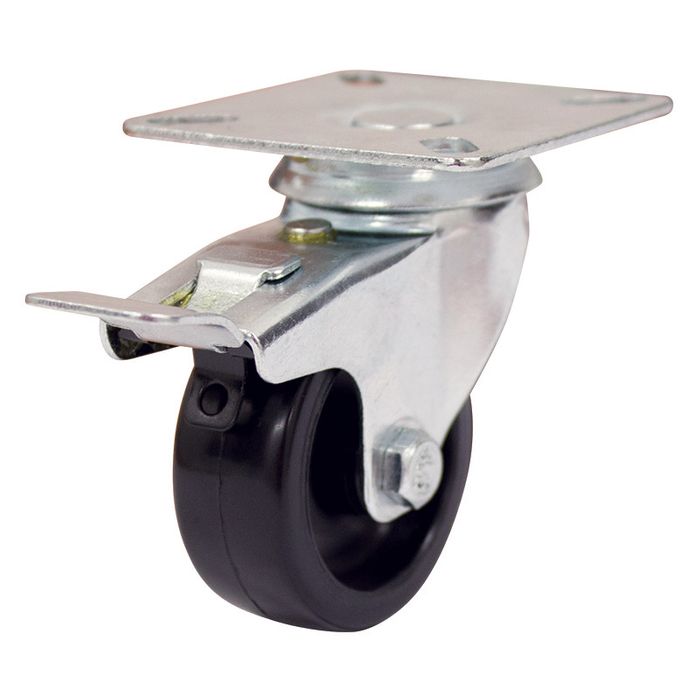

Richmond - Utility Series Plate Braked Swivel Cast

50mm Nylon Wheel 30/25kg
Stock Code:
S2708B
$9.83 incl GST

Stock Locations

  • Ballarat:
    22 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

50mm Nylon Wheel 30kg Capacity Castor (S2708B)

Wheel Diameter: 50mm

Castor Frame Type: Swivel with Brake

Wheel Width: 20mm

Wheel Type: Nylon

Wheel Bearing Type: Plain Bore

Castor Height: 69mm

Swivel Radius: 77mm

Maximum Load Capacity: 30kg

Recommended Load Capacity: 25kg

Plate mounted, Richmond’s Utility Castor has endless light duty applications including wire baskets, display equipment and light trolley applications. Zinc plated, pressed metal construction provides an attractive corrosion resistant finish. Together with the choice of nylon or grey non-marking wheels, this castor is truly a utility by name and nature , a must have for all small fabricating, retailers and home handy man purposes.

The S2708B by Richmond Wheel and Castor Co. is a swivel frame castor and is fitted with a nylon wheel. This swivel castor is one of our utility series range and can safely take loads up to 30kg. The S2708B uses plain bearings for wheel rotation. This castors swivel frame allows the load to be steered. The diameter of the nylon wheel is 50mm, the wheel width is 20mm. To order this castor without a brake, search for S2708.

Details

  • Material:
    Nylon - Black
  • Width:
    20 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 70 Kg - Utility Series
  • Type:
    Swivel - Plate - Braked
  • Size:
    30 Kg
  • Diameter Outside:
    50 mm (2 inch)
  • Style:
    Zinc Plated
