Richmond - Light Industrial Series Rigid Castor

75mm Ci Wheel 125kg
Stock Code:
R3307
$24.42 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

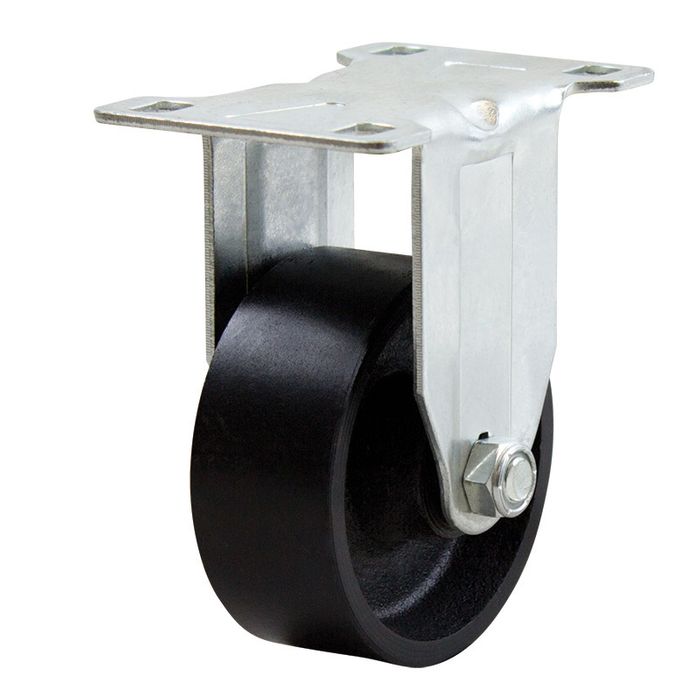

75mm Ci Wheel 100kg Capacity Castor (R3307)

Wheel Diameter: 75mm

Castor Frame Type: Rigid

Wheel Width: 32mm

Wheel Type: Cast Iron

Wheel Code: Ci3340

Wheel Bearing Type: Plain Bore

Castor Height: 108mm

Load Capacity: 100kg

Available with a large range of wheels each designed to suit varied floor surfaces, application and load requirements – Richmond’s Light Industrial Series castors are ideal for use on mobile equipment, hospital equipment, nurseries, shops and general industry. The light industrial series is the castor of choice or green grocers and market stalls for produce bins as it provides an economical hard wearing reliable castor. Combining a zinc plated corrosion resistant frame and a robust twin race swivel ensures a long and productive life.

The R3307 manufactured by Richmond Wheel and Castor Co. is a rigid frame castor and features a cast iron wheel. This rigid castor is one of our light industrial series range and can safely take loads up to 125kg. The R3307 uses plain bearings for wheel rotation. The rigid frame only allows linear movement unless used with swivel castors. The diameter of the cast iron wheel is 75mm, the wheel width is 32mm and can be ordered separately (Ci3340).

Details

  • Material:
    Cast Iron
  • Width:
    32 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 600 Kg - Light Industrial Series
  • Type:
    Fixed
  • Size:
    125 Kg
  • Diameter Outside:
    75 mm (3 inch)
  • Style:
    Zinc Plated
