Richmond - 500 Series Plate Swivel Castor

200mm Poly Nylon Wheel 400kg with Brake
Stock Code:
S8214SLB
$240.86 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

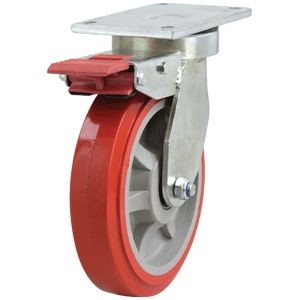

200mm Poly Nylon Wheel 400Kg Capacity Castor (S8214SLB)

Wheel Diameter: 200mm

Castor Frame Type: Swivel with Swivel Lock and Brake

Wheel Width: 50mm

Wheel Type: Polyurethane

Wheel Code: PU8071

Wheel Bearing Type: Ball Bearing

Castor Height: 248mm

Swivel Radius: 155mm

Maximum Load Capacity: 400kg

Recommended Load Capacity: 300kg

The 500 Series is designed and manufactured for heavy duty applications including low speed, medium weight towing up to a maximum speed of 6kph. A sealed precision machined ball race ensures the swivel movement is kept clean and smooth. Complete with a high tensile kingpin to withstand high impact side loads, Richmond’s 500 Series moves high demand industries such as; Automotive, Rapid moving production lines and steel manufacturer’s due to the reliability and performance of this robust castor.

The S8214SLB manufactured by Richmond is a swivel frame castor and uses a polyurethane wheel. This swivel castor is one of our 500 series range and has a maximum capacity of 400kg. The S8214SLB uses ball bearings for wheel rotation. This castors swivel frame permits the load to be steered. The overall polyurethane wheel diameter is 200mm, the wheel width is 50mm and you can order separately (Part Number: PU8071).

Details

  • Thread Size:
    M12 Hole
  • Material:
    Rubber - Blue / Nylon
  • Width:
    35 mm
  • Brand:
    RICHMOND
  • Chain Series:
    < 300 Kg - 300 Series
  • Type:
    Swivel - Bolt Hole - Braked
  • Size:
    400 Kg
  • Diameter Outside:
    200 mm (8 inch)
  • Style:
    Zinc Plated
