Pferd - Fan Grinder - 6mm Shank

Fan Grinder F 6030/6 A 60
Stock Code:
PF-44509066
$14.39 incl GST

Stock Locations

  • Ballarat:
    11 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

Product Description

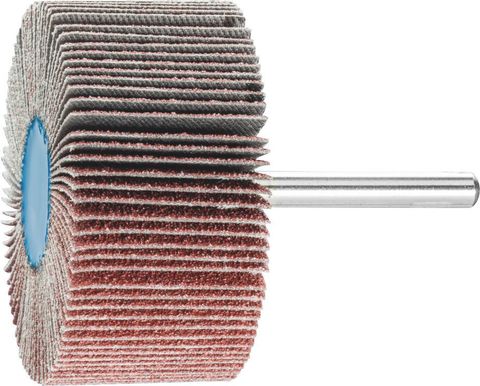

Pferd Fan Grinder 60 x 30mm - 6 MM Shank

  • Fan Grinder Aluminium Oxide Shank
  • For universal applications from coarse to fine grinding.

Advantages

  • High flexibility
  • High stock removal due to the aggressive coated abrasive
  • Carrier material wears off uniformly and without residue on the workpiece surface, meaning that sharp abrasive grit is exposed at all times
  • Due to the flat cast core construction, the face of the mounted flap wheels can be used to work very close to edges and in corners

Recommendations for use

  • Mounted flap wheels achieve their best performance at a recommended cutting speed of 20 m/s. This provides an ideal compromise between stock removal, surface quality, thermal load on the workpiece and tool wear.
  • Flexible shafts, electric and air-powered straight grinders can be used as tool drives
  • Use grinding oil that is suitable for the material in order to significantly increase the tool life and the abrasive performance of the tools.

Safety notes

  • For safety reasons, it is imperative to remain within the stated maximum permitted rotational speed at all times
  • Safety is only guaranteed if:
  • The clamping depth is at least 15 mm
  • The specified maximum rotational speed for unsupported shank lengths is not exceeded

Materials that can be worked

  • Aluminium
  • Copper
  • Other non-ferrous metals
  • Soft non-ferrous metal
  • Brass
  • Stainless steel (INOX)
  • Grey/nodular cast iron (GG/GJL, GGG/GJS)
  • Annealed cast iron
  • Hardened, heat-treated steels over 1200 N/mm2 (over 38 HRC)
  • Steel materials with a hardness over 54 HRC
  • Steel, cast steel
  • Steels up to 1200 N/mmŒ_ (< 38 HRC)
  • Cast steel

Can be used in

  • Leveling
  • Deburring
  • Surface work
  • Weld dressing
  • Structuring (matt finishing, brush matting and satin finishing)
  • Fine grinding in multiple steps

Drive types

  • Flexible shaft drive
  • Straight grinder

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    PFERD
