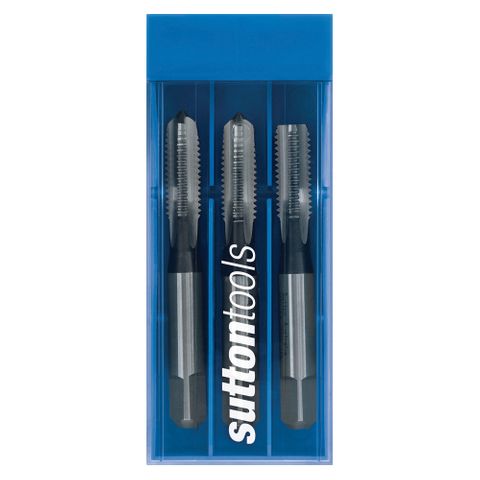

Sutton - Straight Flute Tap Set

M5 x 0.8 ISO529 HSS
Stock Code:
SUT-T9010500
$66.31 incl GST

Stock Locations

  • Ballarat:
    6 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

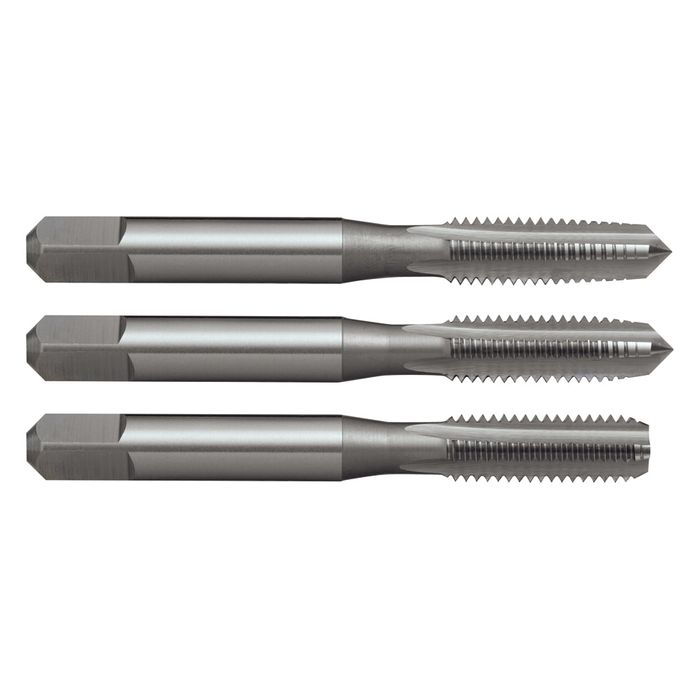

Sutton T9010500 M5 x 0.8 Straight Flute Tap Set (3 piece) ISO529 HSS

Sutton Straight Flute Tap Sets - M

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approximately 1 x D1

Specifications:

  • Designation: N
  • Material: High Speed Steel HSS
  • Finish: Brt
  • Max Cut Depth: 1x D
  • Shank Form: A
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: M
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Set

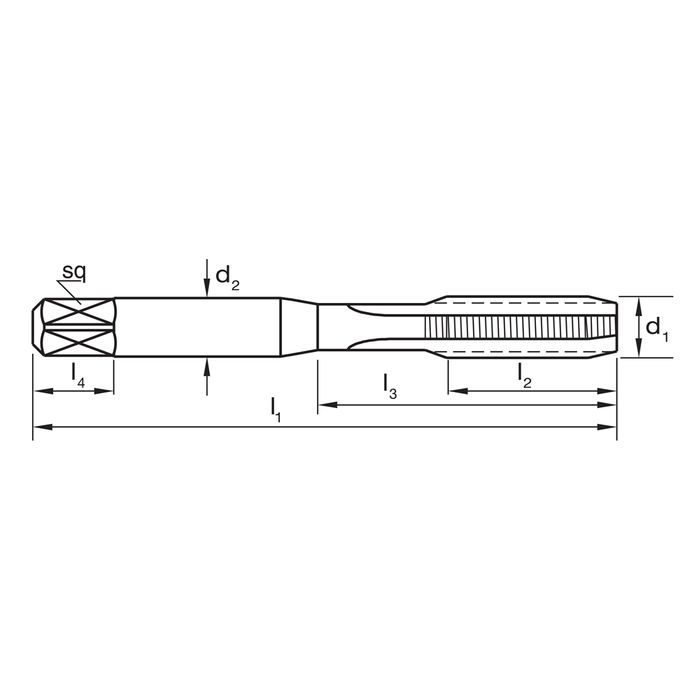

  • Shank (mm) 5
  • L1 (mm) 58
  • Pitch (mm) 0.8
  • Diameter (metric) M5
  • L2 (mm)16
  • Sq 4
  • z3
  • L4 (mm) 7
  • L3 (mm) 22

Application

  • ISO: H
  • VDI: 41
  • Description: Cast Iron
  • Condition: Hardened and Tempered
  • Hardness: 55HRC

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
