Sutton - Hand Tap 3PC Set

Metric 6x1
Stock Code:
SUT-M2030600
$29.92 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

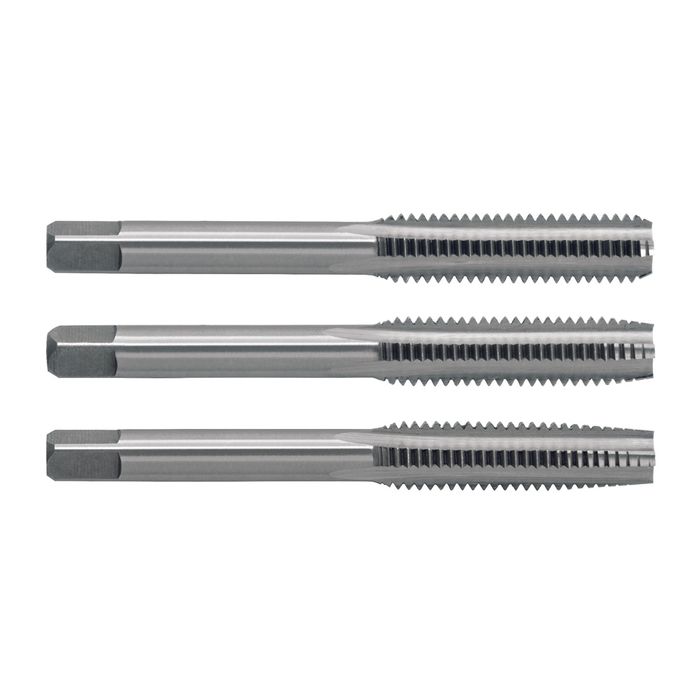

Sutton M2030600 Metric M6 x 1 Hand Tap Set - Tungsten Chrome, 3 Pieces

Sutton M203 Hand Tap Set - M

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.
  • Set comprises 1 each- taper, intermediate & bottoming leads.

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter

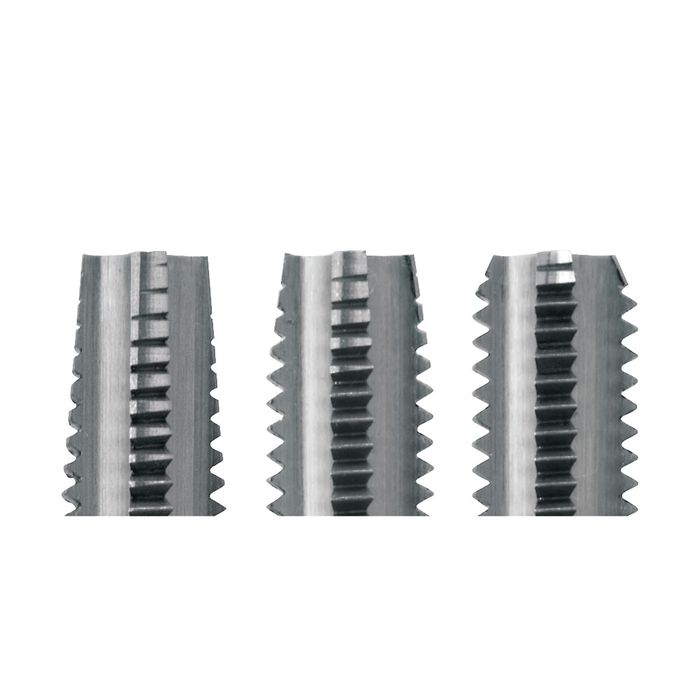

  • Taper lead: suitable for starting a thread
  • Intermediate lead: used after a taper lead and are suitable for through holes
  • Bottoming lead: used after a taper lead and are suitable for blind holes
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: ISO Metric Coarse (M)
  • Lead: Set
  • Pitch Size (mm) 1
  • Drill Size (mm) 5

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
