Sutton - Reduced Shank Drill

5/8 Reduced Shank 3/8 HSS
Stock Code:
SUT-D1201588
$58.81 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

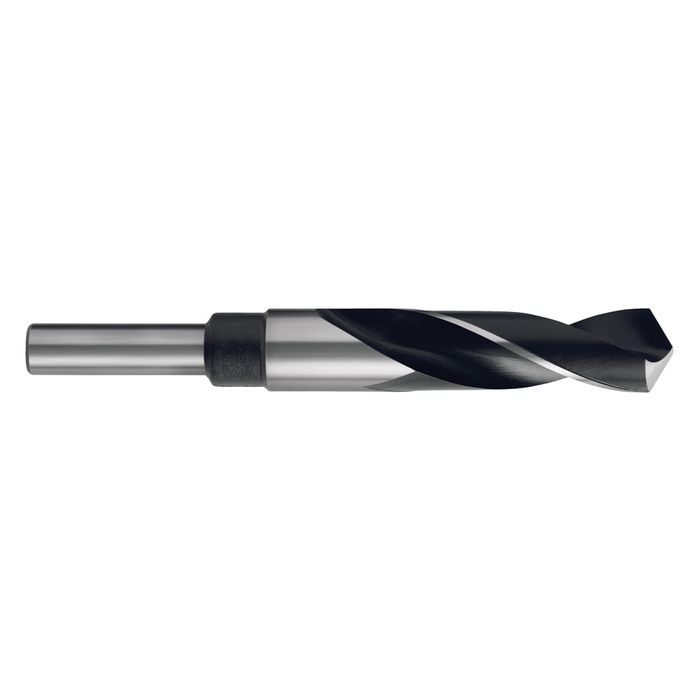

Sutton - Reduced Shank Drill

5/8 Reduced Shank 3/8 HSS

  • Sutton Tools Reduced Shank Drills are designed to increase the drilling capacity of drill chucks and for slow speed (350 RPM or less), large scale boring
  • Reduced shanks suit 10mm drill chucks

Features

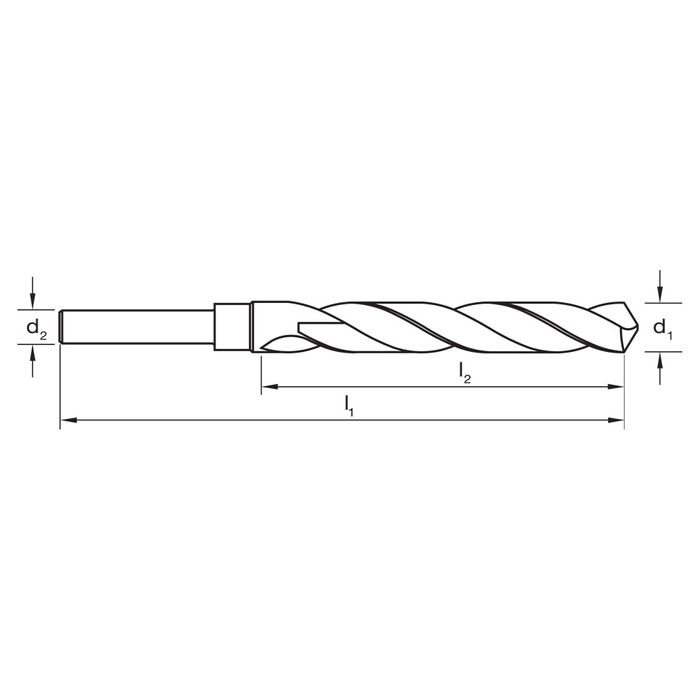

  • Common Length 6" (152mm) overall length with a 3-3/8" (86mm) flute length
  • Reduced shanks suit 10mm drill chucks
  • 118° standard point for general purpose applications
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance

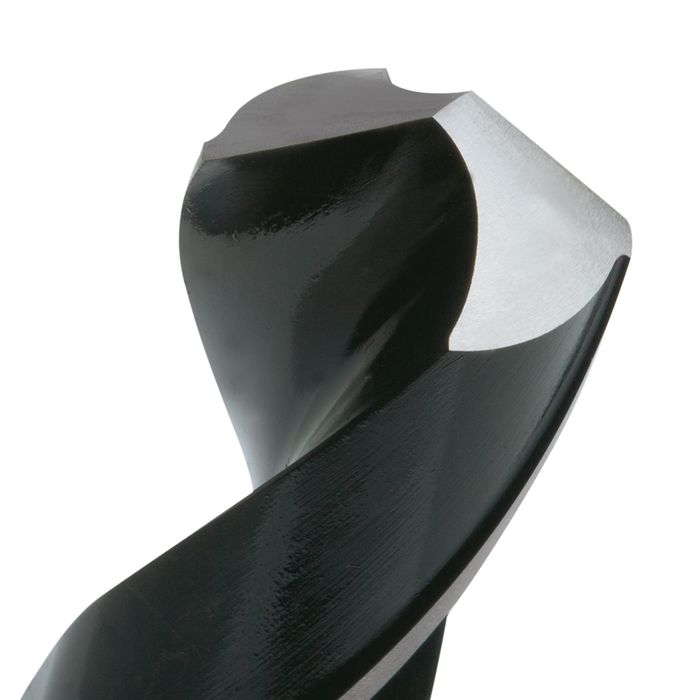

  • Blue flute with precision ground bright cutting edges making it a better choice when drilling ferrous materials

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blue
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
