Sutton - Straight Flute Tap - Intermediate

BSW 3/8 x 16 HSS
Stock Code:
SUT-T4520953
$35.64 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

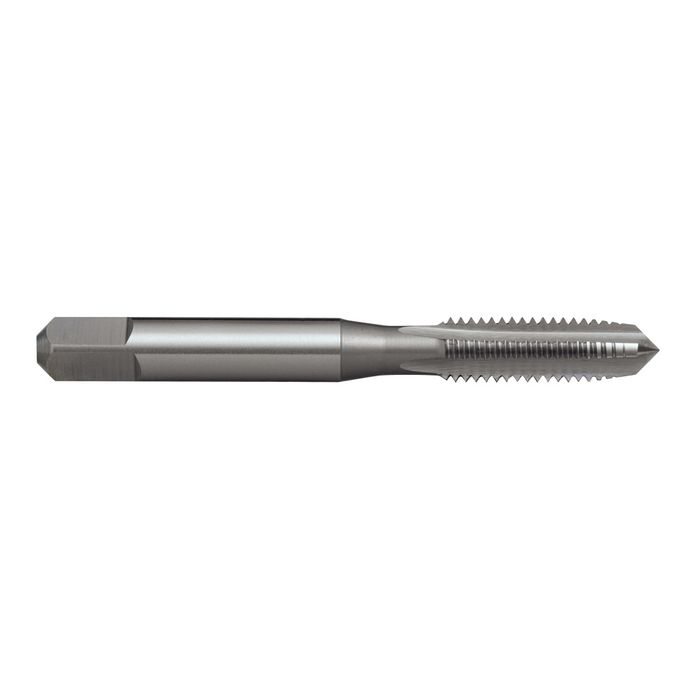

Sutton T4520953 BSW 3/8 x 16 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - BSW - Intermediate

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Intermediate

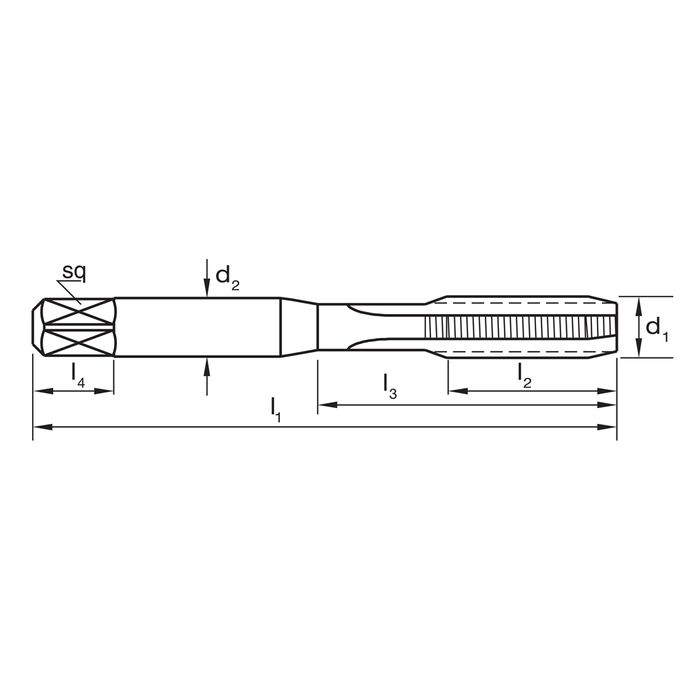

  • Diameter (inch) 3/8
  • TPI16
  • Shank (mm) 10
  • L1 (mm) 80
  • Square Size (mm) 8
  • Drill Size (mm) 7.9
  • L4 (mm) 11
  • z4
  • L2 (mm) 24
  • L3 (mm) 33

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
