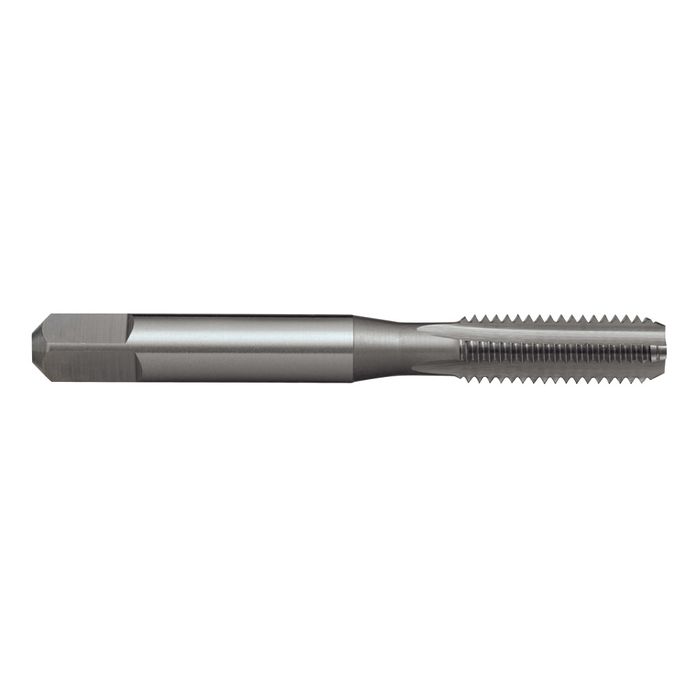

Sutton - Straight Flute Tap - Bottoming

BSW 1/2 x 12 HSS
Stock Code:
SUT-T4531270
$50.56 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton T4531270 BSW 1/2 x 12 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - BSW - Intermediate

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: British Standard Whitworth 55° (BSW)
  • Nut Tolerance: Z3 Medium
  • Lead: Intermediate

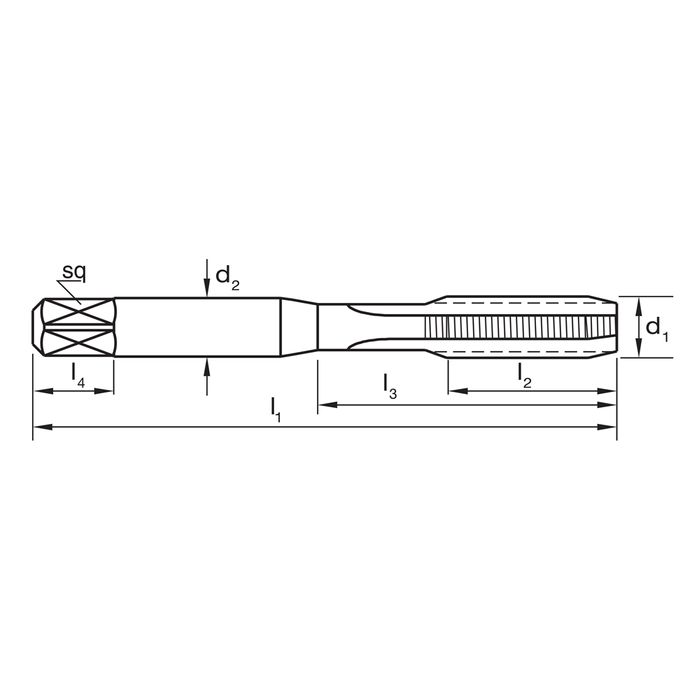

  • Diameter (inch) 1/2
  • TPI12
  • Shank (mm) 9
  • L1 (mm) 89
  • Square Size (mm) 7.1
  • Drill Size (mm) 10.5(drill)
  • L2 (mm) 29
  • L4 (mm) 10
  • z4

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
