Sutton - Straight Flute Tap - Intermediate

BSPF G 3/8 x 19 HSS
Stock Code:
SUT-T4801666
$81.29 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton T4801666 G-BSPF G 3/8 x 19 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - G (BSPF) - Intermediate

  • General Purpose use for materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Intermediate
  • TPI19

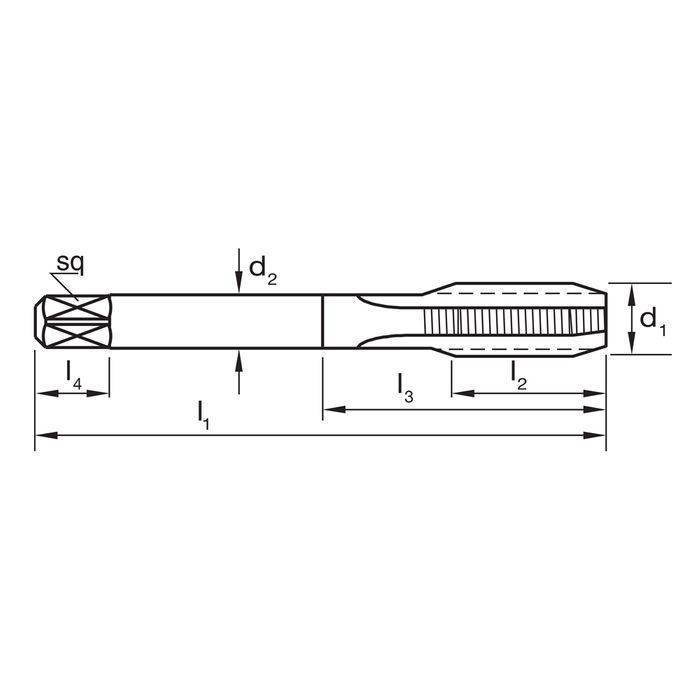

  • Shank (mm) 12.5
  • L1 (mm) 75
  • Diameter G3/8
  • Drill Size (mm) 15.3
  • L2 (mm) 21
  • Sq10
  • z4
  • L4 (mm) 13

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
