Sutton - Straight Flute Tap - Bottoming

NPT 1/8 x 27 HSS Colour Temp
Stock Code:
SUT-T4871029
$72.84 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

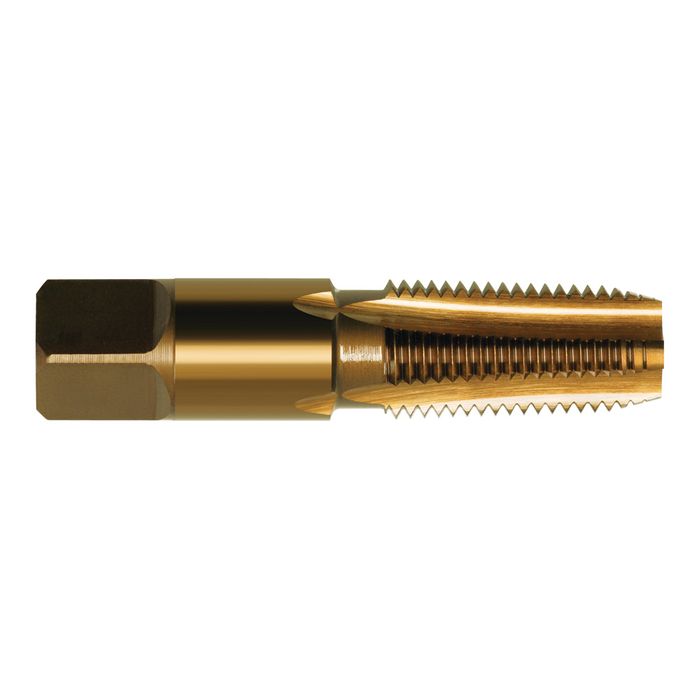

Sutton T4871029 NPT 1/8 x 27 Straight Flute Tap Bottoming HSS Colour Temp

Suttons Straight Flute Taps - NPT - Bottoming

  • General purpose use, materials up to approx. 1000 N/mm2
  • Suitable for both hand and machine operations
  • Taper pipe reamer recommended prior to tapping

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Colour Temp
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Taper
  • Standard: ANSI B94-9
  • Thread Form: NPT
  • Nut Tolerance: ANSI B1.20.1
  • Lead: Bottoming
  • Diameter (inch) 1/8
  • TPI27
  • Shank (mm) 11.11
  • L1 (mm) 54
  • Sq8.33
  • Drill Size (mm) 8.2
  • L2 (mm) 19
  • L4 (mm) 9.5
  • z4

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
