Sutton - Hand Tap 3PC Set

Metric 4x0.7
Stock Code:
SUT-M2030400
$46.71 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

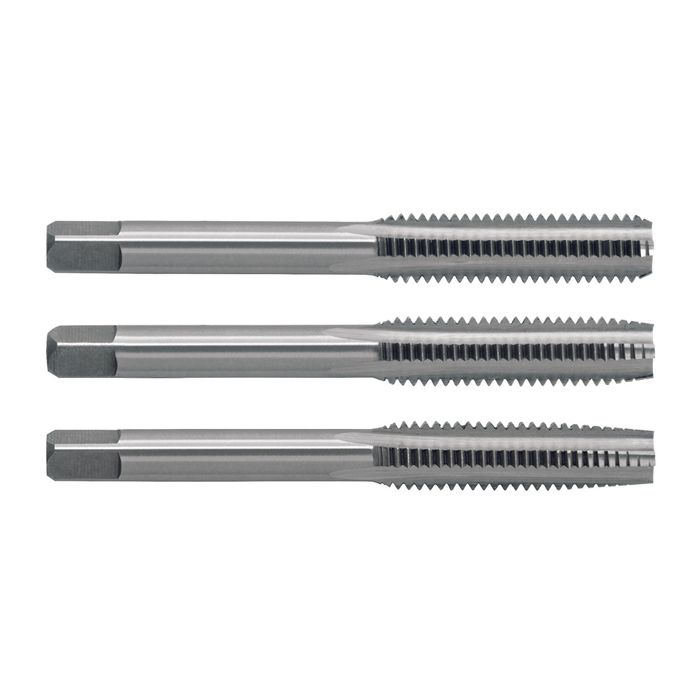

Sutton M2030400 M4 x 0.7 Straight Flute Tap Set (3 piece) Tungsten Chrome

Sutton - Hand Tap 3PC Set

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

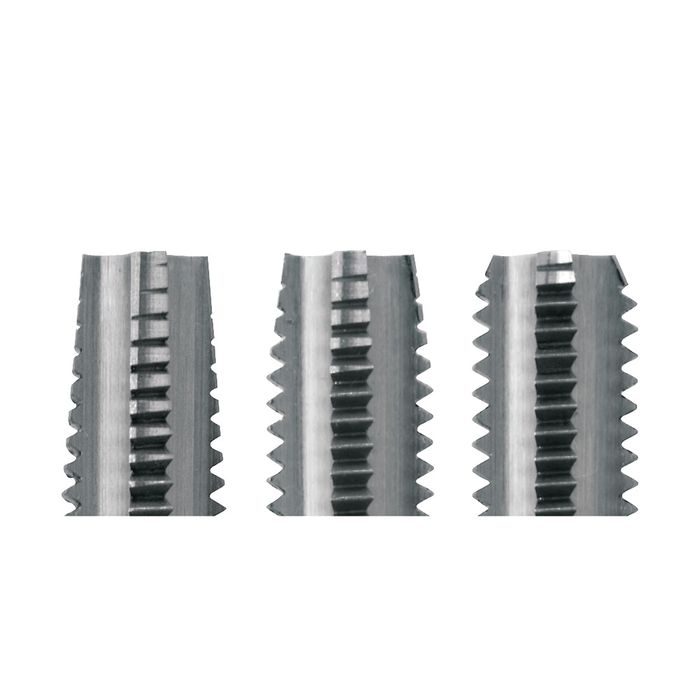

  • Set comprises 1 each- taper, intermediate & bottoming leads.

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter
  • Taper lead: suitable for starting a thread
  • Intermediate lead: used after a taper lead and are suitable for through holes
  • Bottoming lead: used after a taper lead and are suitable for blind holes
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: ISO Metric Coarse (M)
  • Lead: Set
  • Pitch (mm) 0.7
  • Diameter Size (mm) M4
  • Drill Size (mm) 3.3
