Sutton - Hand Tap 3PC Set

UNF 1/2-20
Stock Code:
SUT-M2231270
$56.28 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

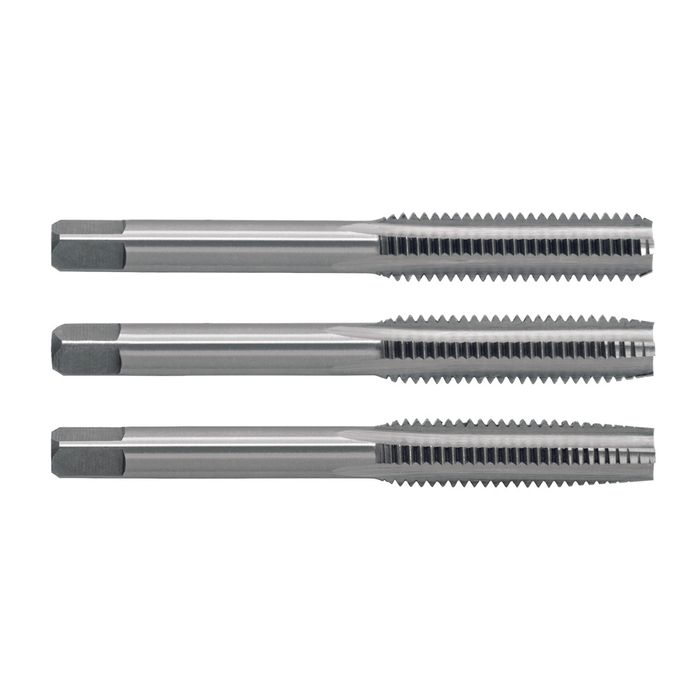

Sutton M2231270 UNF 1/2-20 Hand Tap Set (Taper/Interm/Bottom) TCA

Sutton - Hand Tap 3PC Set

  • Sutton Tools Carbon Hand Taps are ideal for routine maintenance, repair work and for rethreading where high accuracy and tolerance thread is not critical.
  • Straight flutes are designed for tapping into materials where chips break-up readily and present no disposal problems, particularly in through-hole tapping.
  • Straight flute taps are only suitable for hand operations, tapping up to 1-1/2 x diameter.

Features

  • Straight Flutes suitable for through hole tapping up to 1-1/2 x diameter

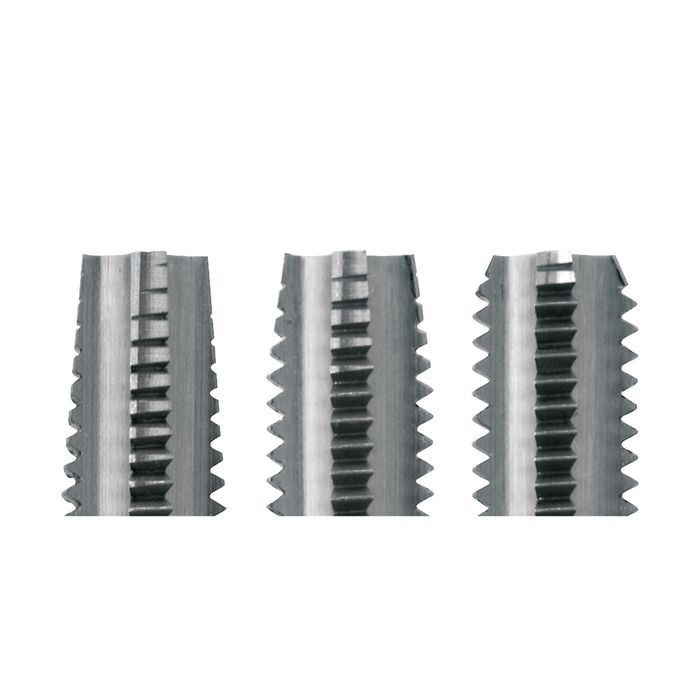

  • Taper lead: suitable for starting a thread. Intermediate lead: used after a taper lead and are suitable for through holes
  • Bottoming lead: used after a taper lead and are suitable for blind holes
  • Square shank for use with a suitable tap wrench to drive the tap
  • Made from tungsten chrome alloy
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: Tungsten Chrome Alloy (TCA)
  • Finish: Bright
  • Max Cut Depth: 1.5xD
  • Shank Form: Square Shank
  • X: als
  • Type: Straight Flute
  • Thread Form: UNF
  • Lead: Set
  • Diameter (inch) 1/2
  • TPI20
  • Drill Size (mm) 11.5

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
