Sutton - Spiral Point - Gun - Tap - Intermediate

Metric M10 x 1.5 HSSE V3
Stock Code:
SUT-T3941000
$40.70 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

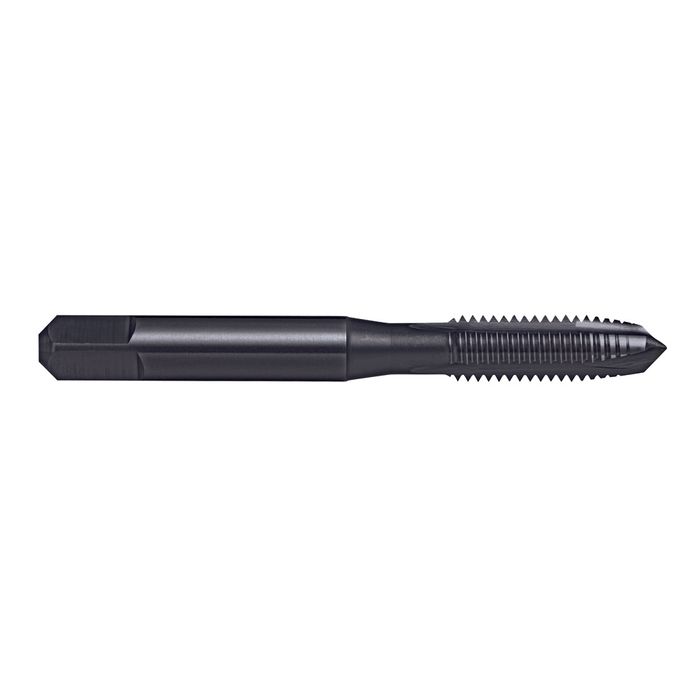

Sutton T3941000 M10 x 1.5 Spiral Point (Gun) Tap Intermediate - Blu

Spiral Point Gun Tap - M - Intermediate Blu, HSSE V3

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N
  • Material: HSSE V3
  • Finish: Blu
  • Max Cut Depth: 3xD
  • Shank Form: A
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: M
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P

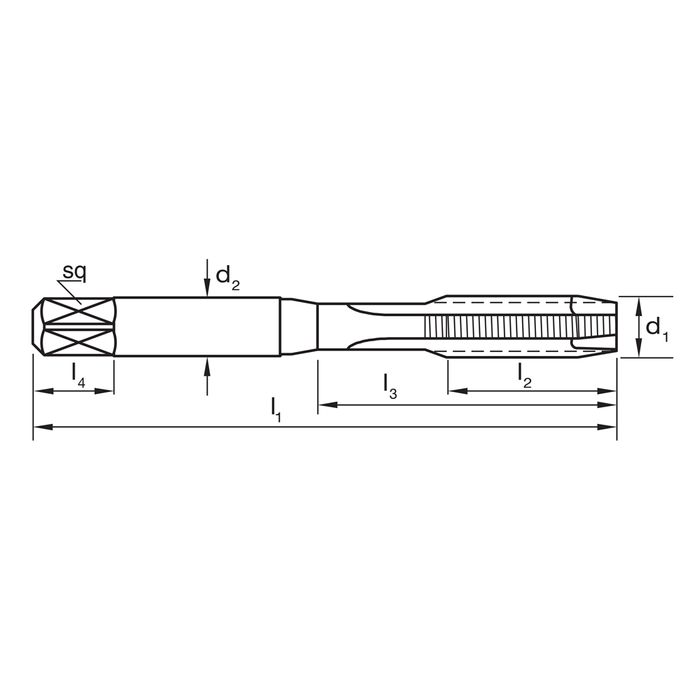

  • Size (metric) M10 x 1.5
  • L1 (mm) 80
  • Pitch (mm) 5
  • Drill Diameter 5
  • L4 (mm) 11
  • L2 (mm) 24
  • D1 M10
  • Z 3
  • D2 10
  • Sq 8
  • L3 (mm) 34

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Note: T3942200, T3942400, and T3943000 - Available on request as special manufacture. Subject to lead time.
