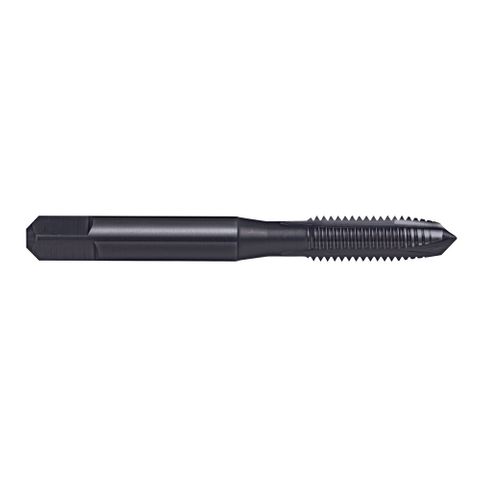

Sutton - Spiral Point - Gun - Tap - Intermediate

Metric M12 x 1.75 HSSE V3
Stock Code:
SUT-T3941200
$70.84 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

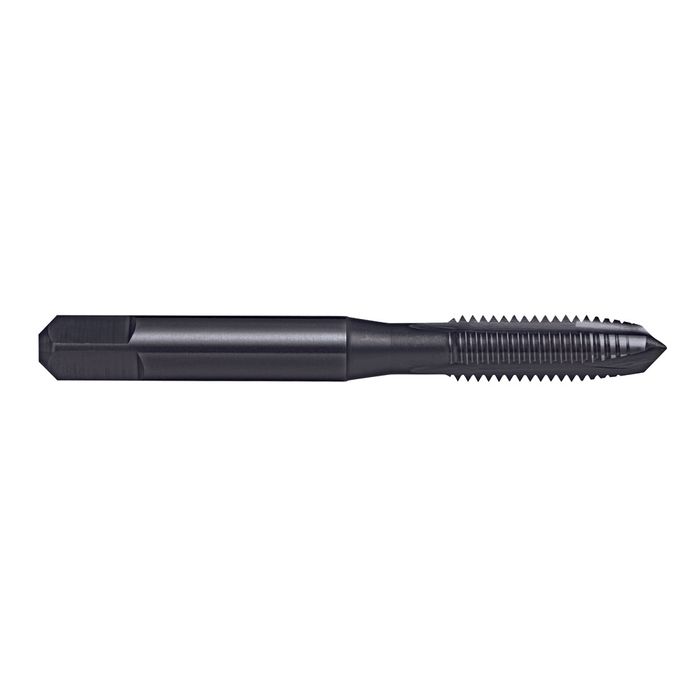

Sutton T3941200 M12 x 1.75 Spiral Point (Gun) Tap Intermediate - Blu

Spiral Point Gun Tap - M - Intermediate Blu, HSSE V3

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Through holes
  • Depths up to approx. 3 x d1

Specifications

  • Designation: N
  • Material: HSSE V3
  • Finish: Blu
  • Max Cut Depth: 3xD
  • Shank Form: A
  • Type: Spiral Point (Gun)
  • Standard: ISO529
  • Thread Form: M
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Form B / 4.5 x P
  • Size (metric) M12 x 1.75

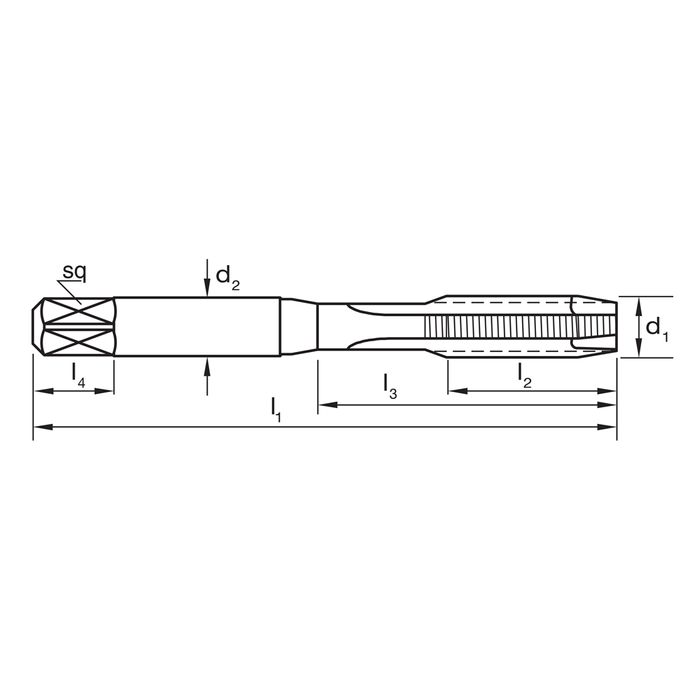

  • L1 (mm) 89
  • Pitch (mm) 75
  • D29
  • Sq 1
  • L2 (mm) 29
  • Drill Diameter 2
  • L4 (mm) 10
  • D1 M12
  • Z 3
  • System of Measurement Metric

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

Note: T3942200, T3942400, and T3943000 - Available on request as special manufacture. Subject to lead time.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
