Sutton - Jobber Drill - Silver Bullet

Trade Pack - 9/64 ANSI B94-11 HSS Pack of 10
Stock Code:
SUT-D1040357
$33.29 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

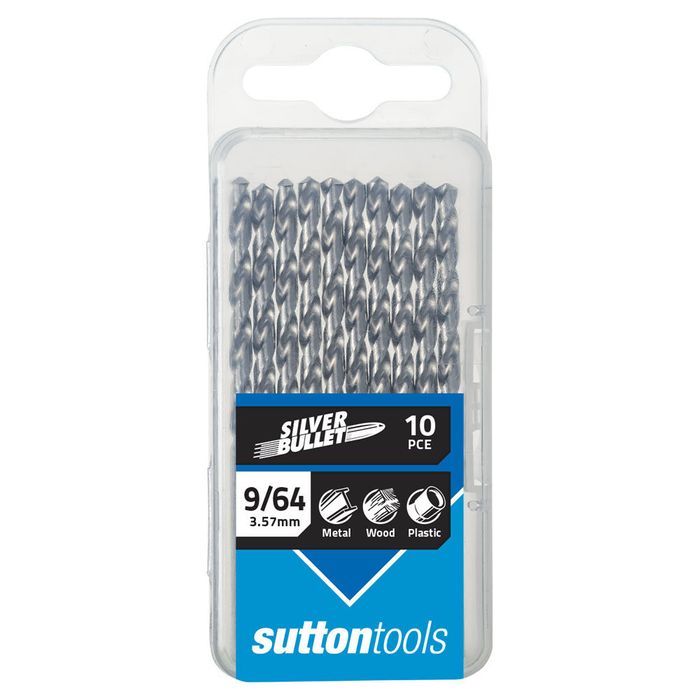

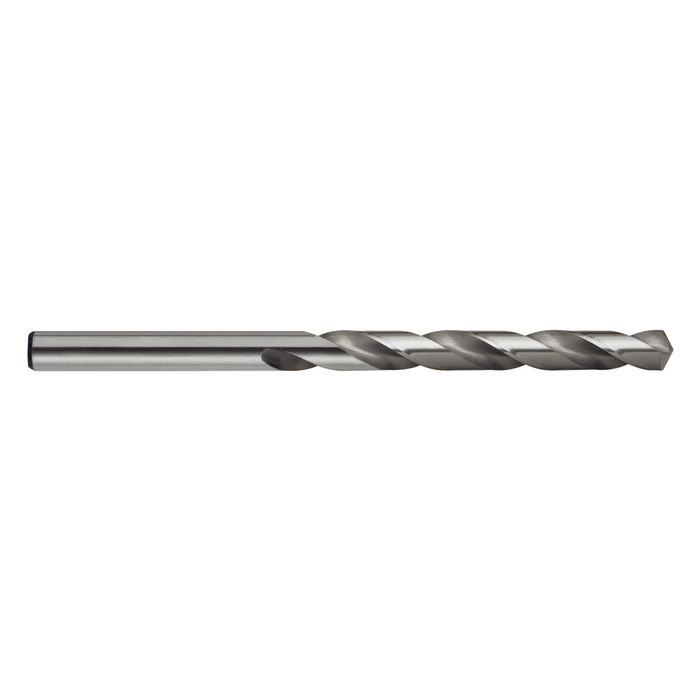

Sutton - Jobber Drill - Silver Bullet

Trade Pack - 9/64 ANSI B94-11 HSS Pack of 10

Sutton Tools Silver Bullet jobber drills are a general-purpose drill bit designed for machine and handheld drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics

Features

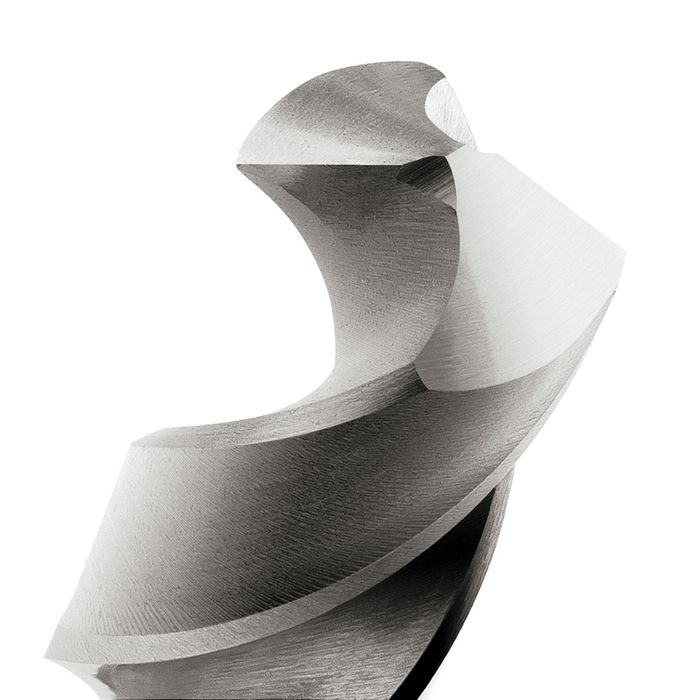

  • 118° standard point for general purpose applications
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High-Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: High-Speed Steel
  • Finish: Bright
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul

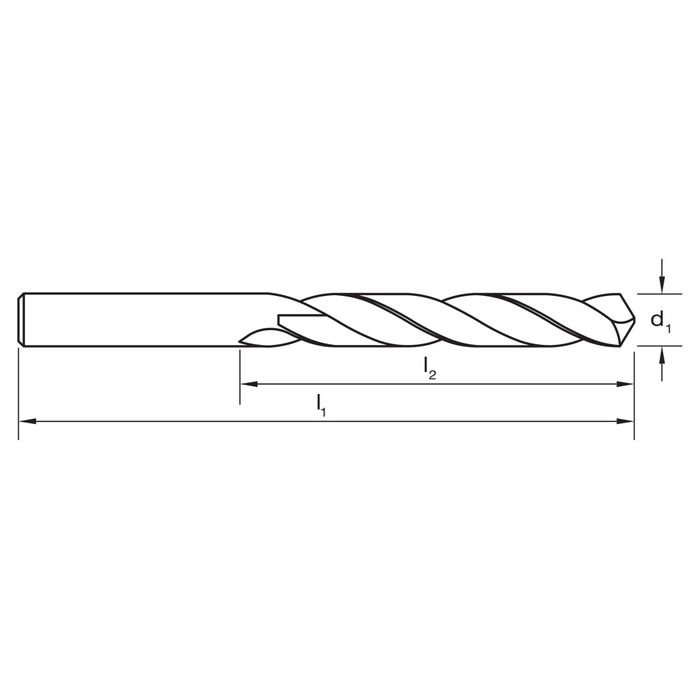

  • Diameter (inch) 9/64
  • Diameter (mm) 3.6
  • Overall Length (mm) 73
  • Flute Length (mm) 44



Click here for catalogue information



Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
