Sutton - Jobber Drill - Silver Bullet

13.0mm DIN338 HSS Web Thin Pack of 5
Stock Code:
SUT-D1011300
$32.01 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

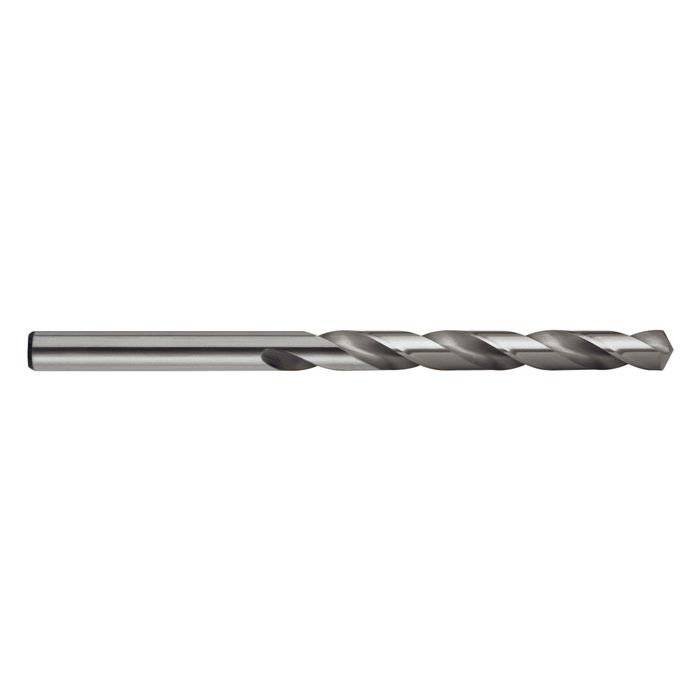

Sutton D1011300 13mm Jobber Drill Bit Silver Bullet HSS Bright - Pack of 5

Sutton Tools Jobber Drill Bits - Silver Bullet

Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminum, brass, wood & plastics

Features

  • 118° standard point for general purpose applications
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Bright
  • Maximum Cut Depth: 5XD
  • Shank Form: A
  • Helix Angle: R30
  • X: als
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Cutting Edges: ul
  • Standard: ANSI B94-11/DIN 338

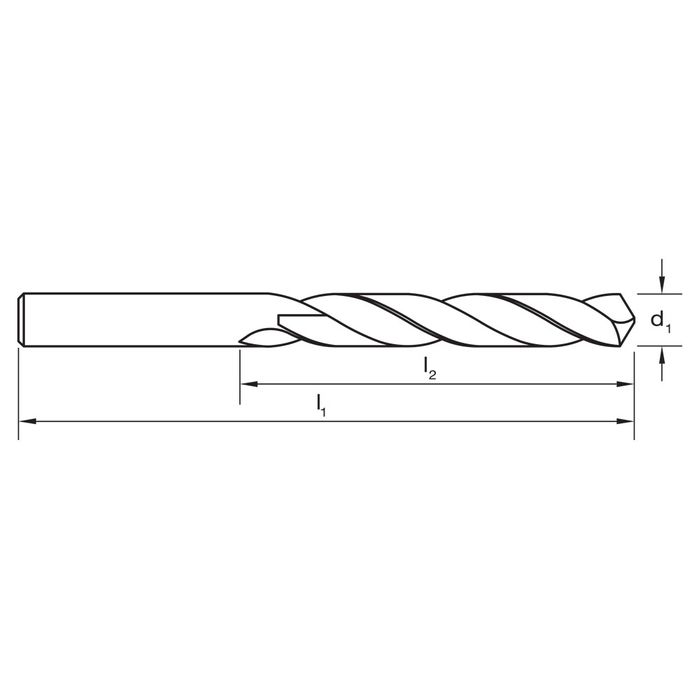

  • Thread Diameter (mm) 13
  • Overall Length (mm) 151
  • Flute Length (mm) 101

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
