Sutton - Straight Flute Tap - Bottoming

NPT 3/8 x 18 HSS Colour Temp
Stock Code:
SUT-T4871715
$147.69 incl GST

Stock Locations

  • Ballarat:
    3 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

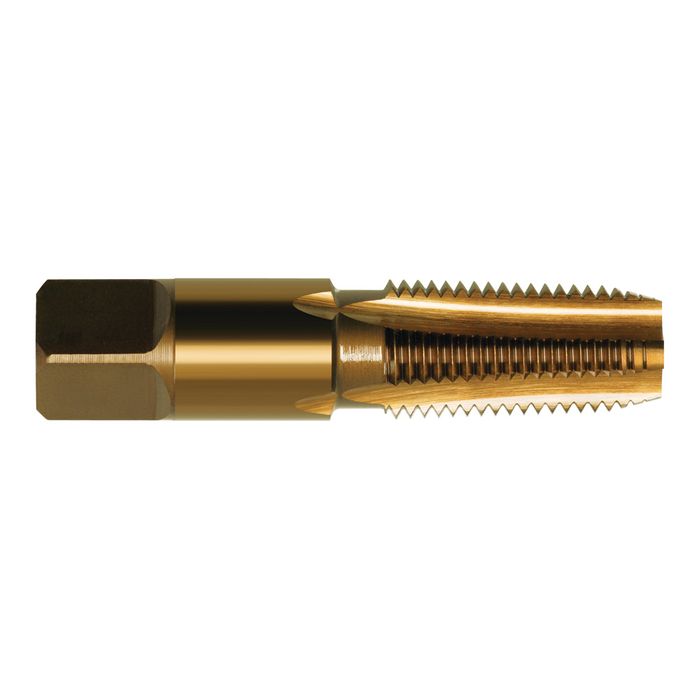

Sutton T4871715 NPT 3/8 x 18 Straight Flute Tap Bottoming HSS Colour Temp

Suttons Straight Flute Taps - NPT - Bottoming

  • General purpose use, materials up to approx. 1000 N/mm2
  • Suitable for both hand and machine operations
  • Taper pipe reamer recommended prior to tapping

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Colour Temp
  • Max Cut Depth: 1.5xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Taper
  • Standard: ANSI B94-9
  • Thread Form: NPT
  • Nut Tolerance: ANSI B1.20.1
  • Lead: Bottoming

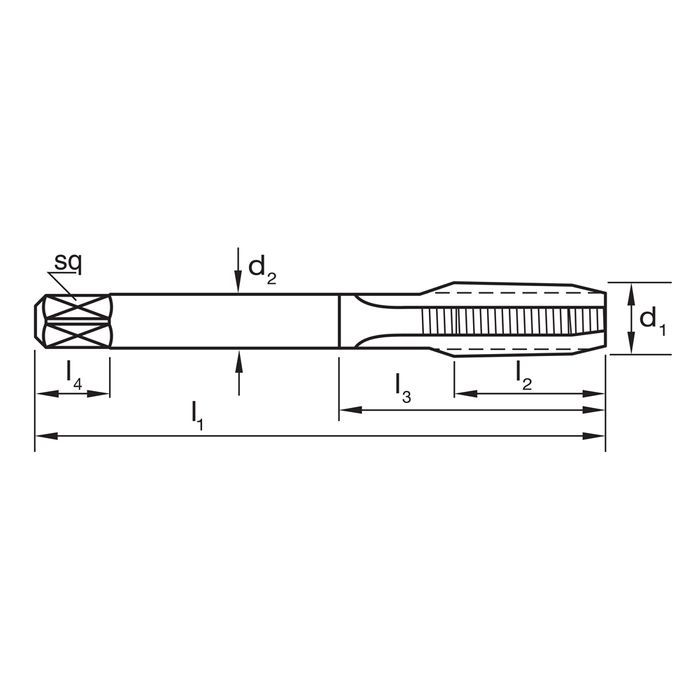

  • Diameter (inch) 3/8
  • TPI18
  • Shank (mm) 17.78
  • L1 (mm) 65
  • Sq 13.49
  • Drill Size (mm) 14
  • L2 (mm) 27
  • L4 (mm) 12.7
  • z4

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
