Sutton - Spiral Point Tap

Metric M6 x 1 HSSE V3 TiCN
Stock Code:
SUT-T1160600
$83.29 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

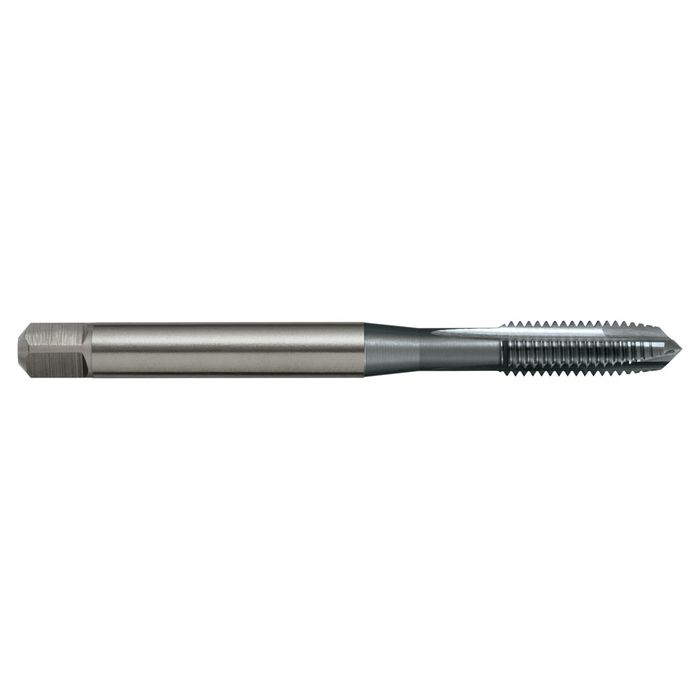

Sutton T1160600 Metric M6 x 1 Spiral Point Tap - HSSE V3 TiCN

Suttons Spiral Point (Gun) Taps - VAPM

  • PM-HSSE V3 offers superior performance
  • Use in stainless steels and high strength steels
  • Suitable for materials up to 850N/mm2
  • Through holes
  • Depths up to 3 x d1

Specifications

  • Designation: VA (for stainless and tough steels)
  • Material: Powdered Metallurgy - Vanadium Grade High Speed Steel (PM-HSSE V3)
  • Finish: Titanium Carbonitride (TiCN)
  • Max Cut Depth: 3xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Spiral Point (Gun)
  • Standard: DIN371
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: 6HX
  • Lead: Form B / 4.5 x P

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
  • Steel - Corrosion resistant & cast - Ferritic / Martensitic: Annealed
  • Stainless Steel - Austenitic: Age Hardened
  • Stainless Steel – Duplex
  • Stainless Steel - Precipitation Hardening
  • High temperature alloys - Fe based: Annealed
  • High temperature alloys - Fe based: Age Hardened
  • High temperature alloys - Ni / Co based: Annealed
