Recoil - Insert UNF 3/8-24 x 1.5D

10 Pack
Stock Code:
SUT-RC24063
$23.50 incl GST

Stock Locations

  • Ballarat:
    4 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

Product Description

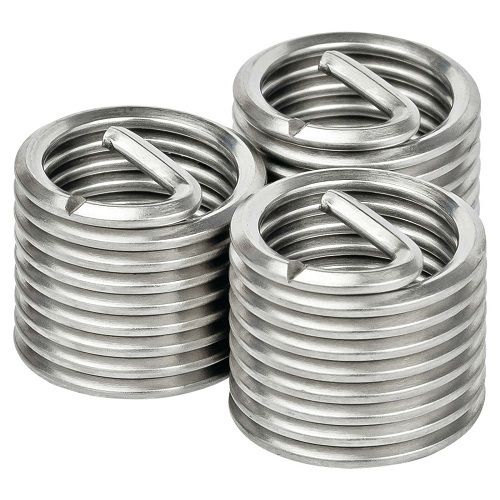

Recoil RC24063 Insert UNF 3/8-24 x 1.5D 10 Pack

About Recoil Inserts

  • Recoil® inserts are rolled from high-quality stainless steel wire with a diamond-shaped cross-section, wound to
    the shape of a spring thread.
  • Once the insert is installed into a tapped hole, it provides a permanent and wear-resistant thread in the parent material designed to be stronger than the original thread.
  • The inserts are greater in diameter than the corresponding tapped hole and compress as they are installed. This allows maximum surface contact area with the tapped thread, safely and permanently anchoring the inserts into place.
  • The insert’s compensatory action shares the load over the entire bolt and hole, increasing holding or pull out strength.
  • With a Recoil® insert in place, load and stress are more evenly distributed.

Applications

  • Original Equipment Manufacture
    • Recoil® offers innovative manufacturers the opportunity to design high-quality products
      using lighter weight metals as well as standard materials.
    • Recoil® inserts can be used in aluminium and magnesium alloys, carbon fibres and other
      materials to achieve stronger and more reliable threads than the parent material alone.
    • Recoil® brand inserts are widely used by manufacturers in a variety of markets including
      the following:
      • Automotive
      • Electronic
      • Aerospace
      • Ship Building
      • Defense
      • Power Generation
      • Transport
      • Manufacturing Equipment
  •  Repair
    • Wherever you encounter a damaged thread Recoil® provides:
      • The quickest and simplest method of thread repair.
      • A quality thread with superior holding power.
      • The most cost-effective method of repair.
      • A new thread in the original size.
      • A thread generally stronger than the original.

Specifications

  • Brand: Recoil
  • Model Number: RC24063
  • Barcode Number: 020317240630
  • Fastener Size: 3/8-24 x 1.5D
  • Pack of: 10
  • Type: Recoil Insert
  • System of Measurement: UNF
  • Material: 304 Stainless Steel

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Thread Size:
    UNF - 3/8-24
  • Left or Right Hand:
    Right Hand
  • Material:
    Stainless Steel
  • Brand:
    Recoil
  • Metric/Imperial:
    Imperial - UNF
  • Type:
    Inserts
  • Size:
    UNF - 3/8
