Sutton - Jobber Drill Set - Silver Bullet

21 Piece Imperial 1/16 - 3/8
Stock Code:
SUT-D101S2
$160.69 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

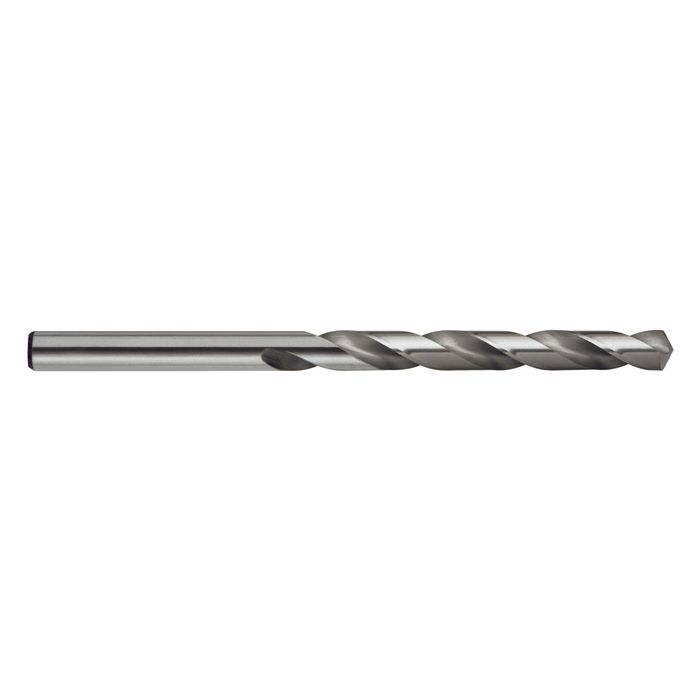

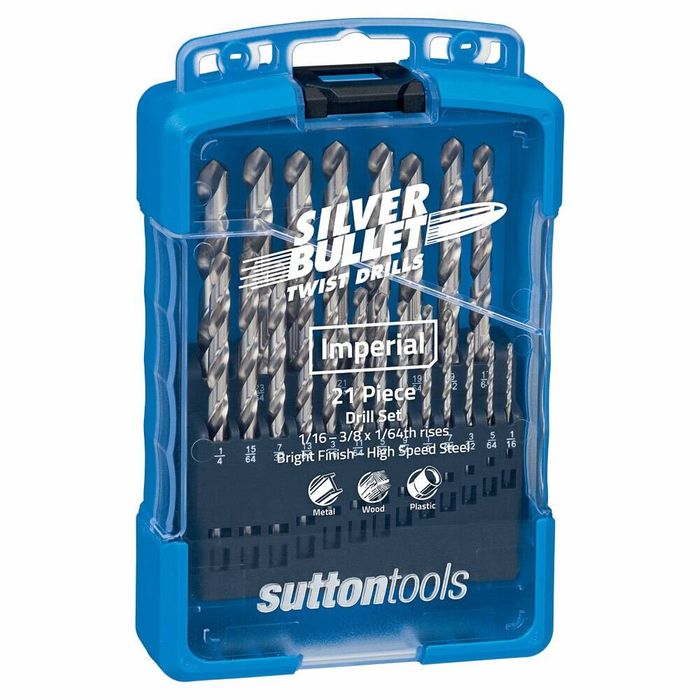

Sutton - Jobber Drill Set - Silver Bullet

21 Piece Imperial 1/16 - 3/8

Sutton Tools Silver Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminum, brass, wood & plastics

Dimensions

  • Range (in): 1/16-3/8 x 64ths
  • Pack Quantity: 21

Features

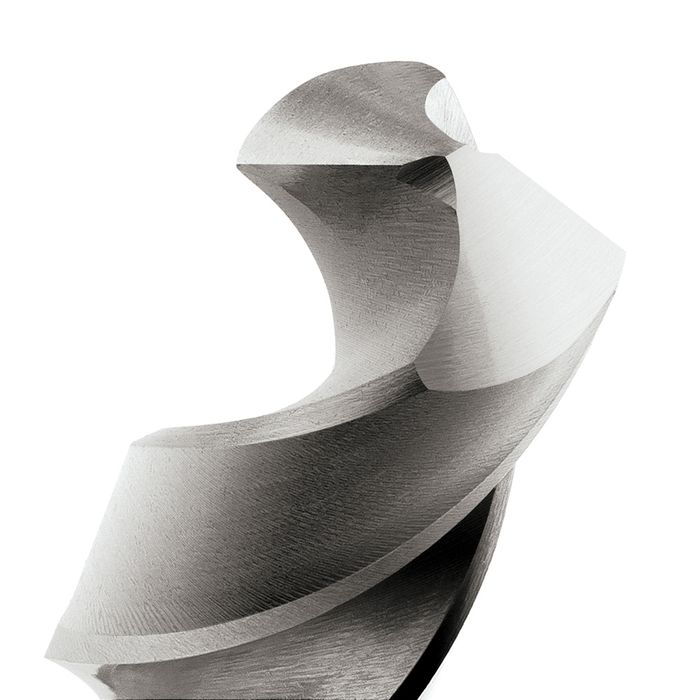

  • 118° standard point for general purpose applications
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Bright
  • Helix Angle: R30
  • Point Angle: 118°
  • Standard: ANSI B94-11

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable- 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable- 100 HB

Specifications

  • Brand Sutton Tools
  • Model Number D101S2
  • Barcode Number 9311963000343
  • Type Jobber Drill Set
  • System of Measurement Imperial
  • MaterialHigh Speed Steel (HSS)
  • Finish Bright
  • Pieces in a Set 21
