Sutton - Jobber Drill - Heavy Duty Cobalt

11/64 ANSI B94-11 HSS
Stock Code:
SUT-D1080437
$17.36 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

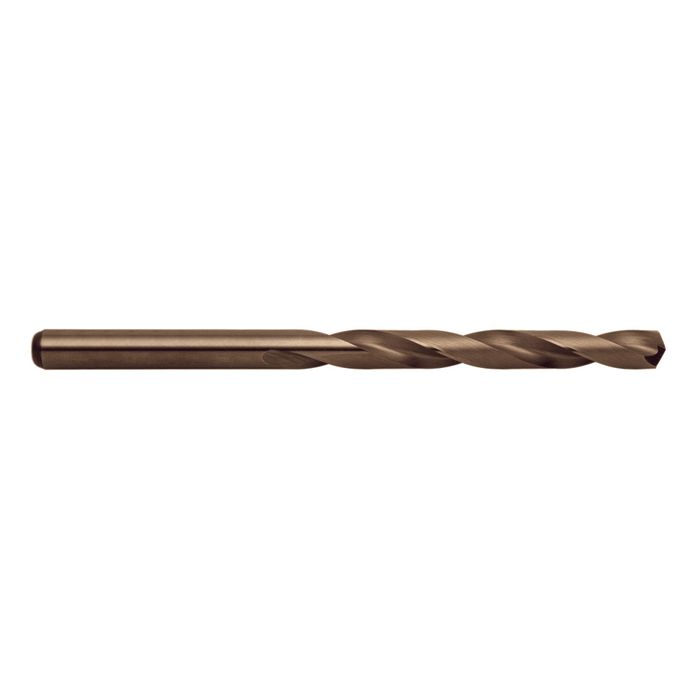

Sutton - Jobber Drill - Heavy Duty Cobalt

11/64 ANSI B94-11 HSS

Sutton Tools Heavy Duty Cobalt jobber drills are industrial quality for drilling materials that have high hardness and tensile strength such as cast iron, bronze, hardened steel & stainless steel. These drill bits feature a thick core for increased rigidity in hard materials.

Features

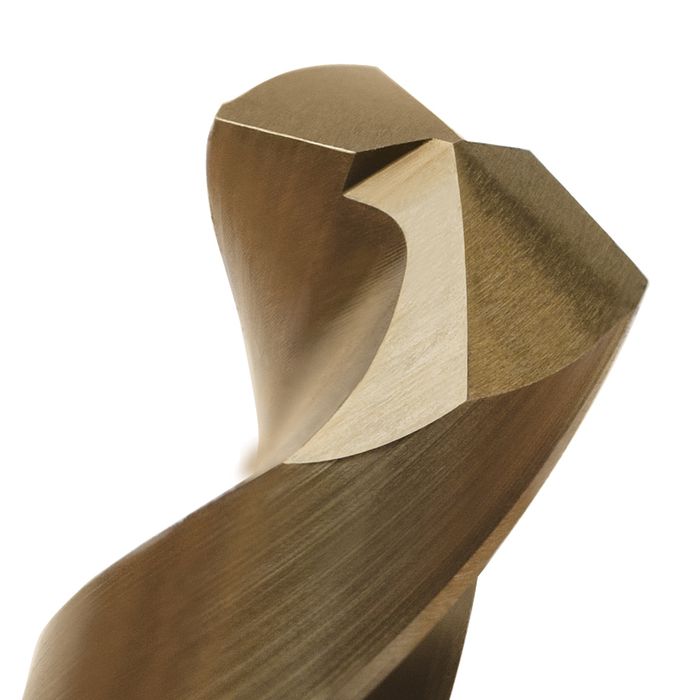

  • 135° split point (drills > 2mm & 3/32) enables accurate positioning and less drilling pressure
  • Thick core for increased rigidity in hard materials
  • Precision engineered parallel shank for accurate hole size
  • Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
  • Colour Tempered surface finish enables identification of cobalt tool material

Specifications

  • Designation: NH
  • Material: HSS Co
  • Finish: Colour Temp
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 135°
  • Point Form: Form C

Applications

  • Effective use on soft wood, hard wood, wood & nails, chipboard, plywood, MDF, green wood, sandwich construction, pallet, window frame, aluminium, copper/brass, sheet metal, PVC plastic and plasterboard.
  • Optimal use on steel, hard steel, stainless steel, cast iron, and metal pipe.
