Sutton - Jobber Drill Set - Blue Bullet

29 Piece Imperial 1/16 - 1/2
Stock Code:
SUT-D102S3
$345.49 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

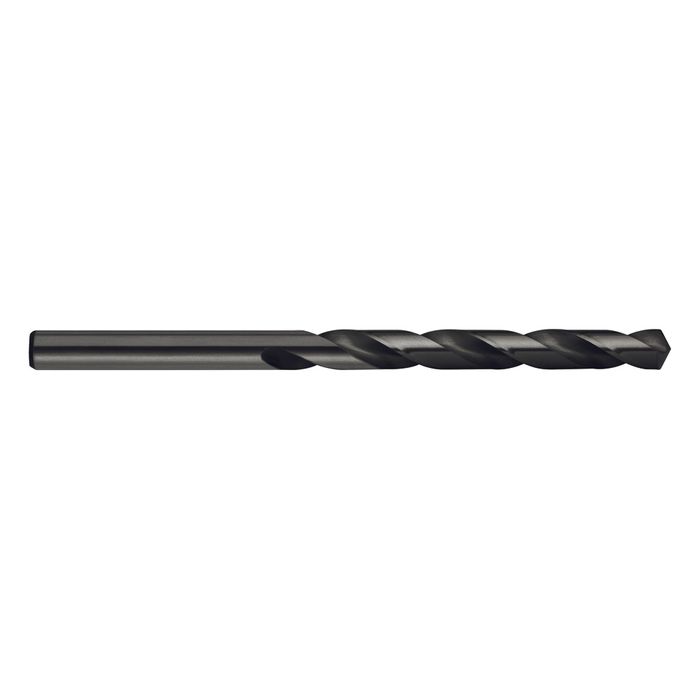

Sutton - Jobber Drill - Blue Bullet

29 Piece Imperial 1/16 - 1/2

  • Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals
  • The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials

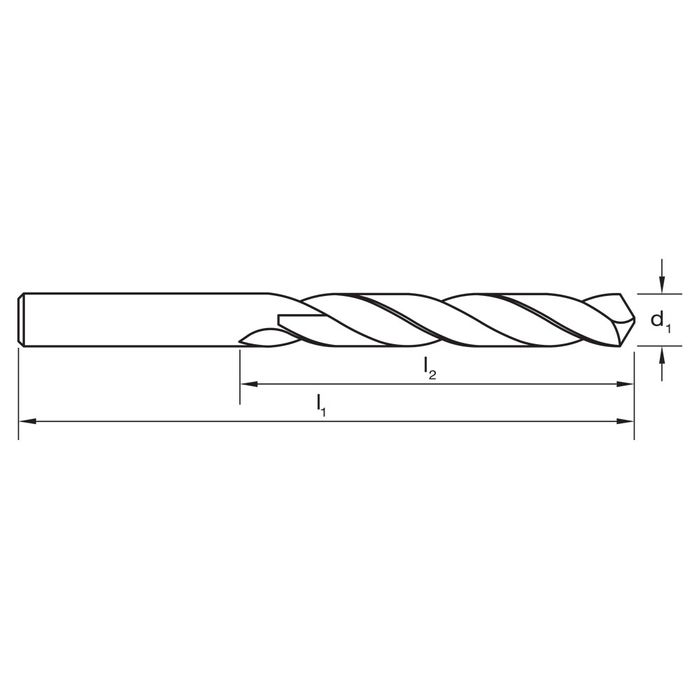

Dimensions

  • Range (in): 1/16-1/2 x 64ths
  • Pack Quantity: 29

Features

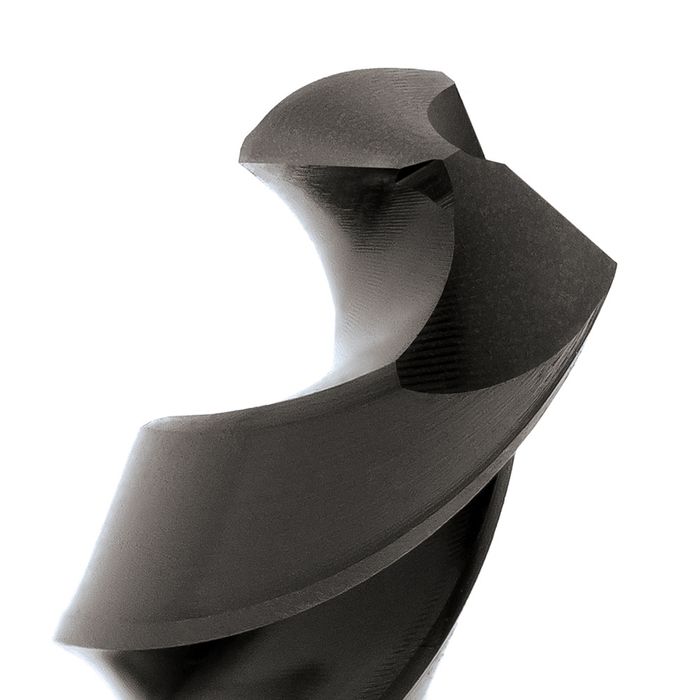

  • 118° standard point for general purpose applications
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications
  • The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: High Speed Steel
  • Finish: Blue
  • Helix Angle: R30
  • Point Angle: 118°
  • Standard: ANSI B94-11

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 275 HB
  • Optimal for Steel - High alloy, cast & tool- 200 HB

Click here for catalogue information

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
