Sutton - Jobber Drill - Viper

19/64 ANSI B94-11 HSS
Stock Code:
SUT-D1050754
$10.19 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

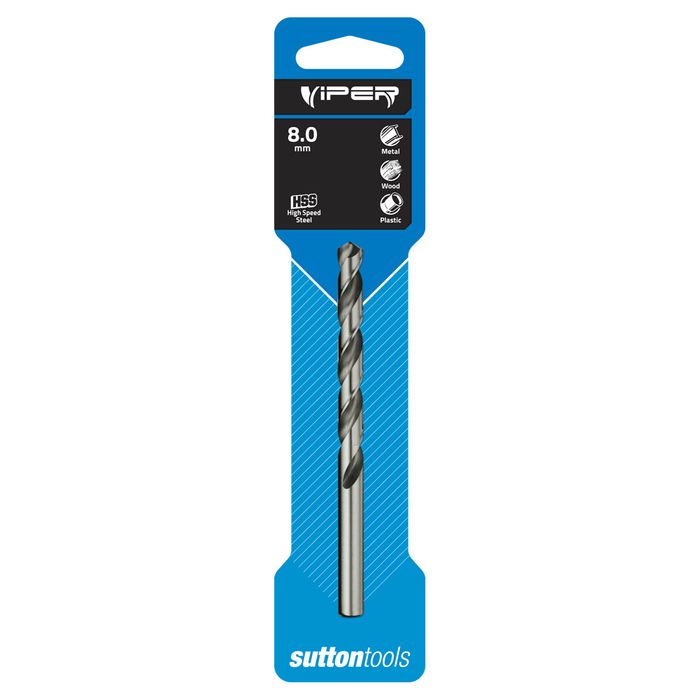

Sutton - Jobber Drill - Viper

19/64 ANSI B94-11 HSS

Drills bits with bite. Sutton Tools presents a breakthrough in twist drill technology – the revolutionary Viper Bit. The Viper Bit has been developed specifically for the semi-industrial trades person and the home handy person. For machine and hand held drilling in a wide range of ferrous & non-ferrous materials such as steel, aluminium, brass, wood & plastics. Viper point design is 2 times faster, out-performing conventional drill bits. The 118° split point is self-centering, minimising wandering when starting and requires less power when drilling. A reduced shank on larger sizes suits 10mm power drill chucks.

Features

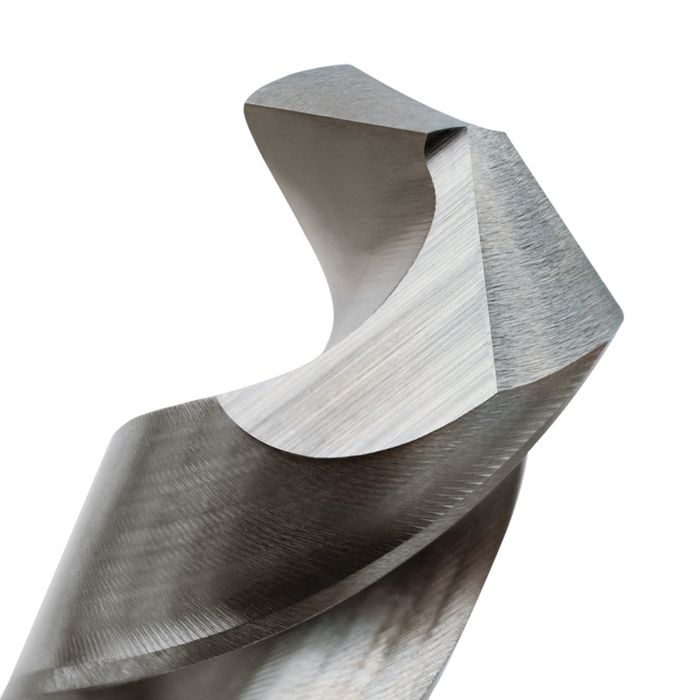

  • 118° Split point (drills >3.5mm & 9/64") minimises wandering when starting
  • Viper point design is 2 times faster, out-performing conventional drill bits
  • Drill sizes above 10mm & 3/8" feature reduced shanks to suit 10mm drill chucks
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Bright finish for general purpose applications, non-ferrous metals & plastics

Specifications

  • Designation: N
  • Material: HSS
  • Finish: Brt
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form C

Applications

  • Effective for use on soft wood, hard wood, wood and nails, chip board, plywood, MDF, sandwich construction, pallet, window frame, sheet metal, metal pipe, PVC plastic, laminate, and plasterboard.
  • Optimal for use on steel, aluminium and copper/brass

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Brand:
    SUTTON
