Description

DESCRIPTION

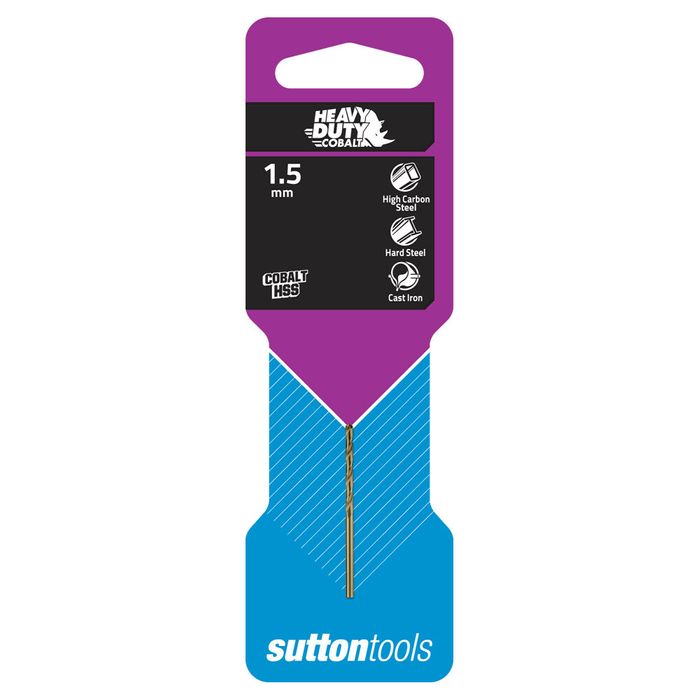

Sutton - Jobber Drill - Heavy Duty Cobalt

1.5mm DIN338 HSS

Sutton Tools Heavy Duty Cobalt jobber drills are industrial quality for drilling materials that have high hardness and tensile strength such as cast iron, bronze, hardened steel & stainless steel. These drill bits feature a thick core for increased rigidity in hard materials.

Features

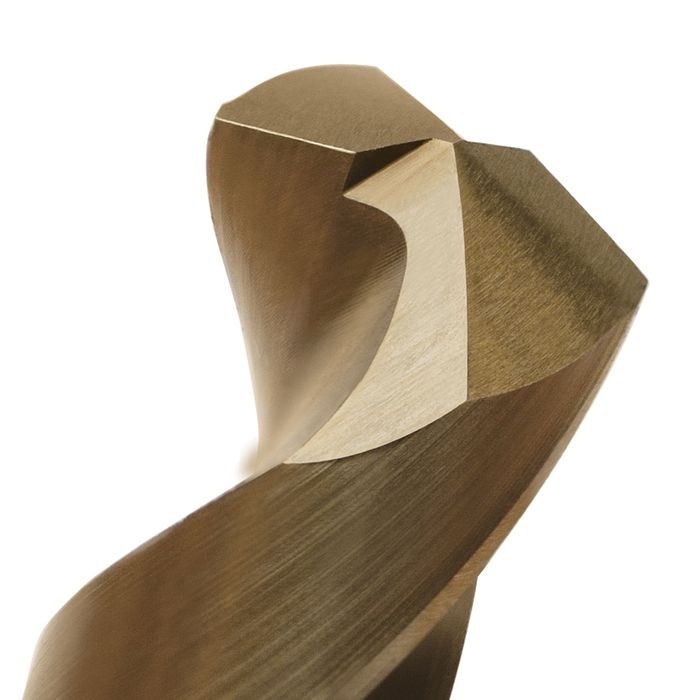

  • 135° split point (drills > 2mm & 3/32) enables accurate positioning and less drilling pressure
  • Thick core for increased rigidity in hard materials
  • Precision engineered parallel shank for accurate hole size
  • Made from HSS Co. The 5% cobalt formula improves abrasive & heat resistance, for increased strength at higher cutting temperatures
  • Colour Tempered surface finish enables identification of cobalt tool material

Specifications

  • Designation: NH
  • Material: HSS Co
  • Finish: Colour Temp
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 135°
  • Point Form: Form C

Applications

  • Effective use on soft wood, hard wood, wood & nails, chipboard, plywood, MDF, green wood, sandwich construction, pallet, window frame, aluminium, copper/brass, sheet metal, PVC plastic and plasterboard.
  • Optimal use on steel, hard steel, stainless steel, cast iron, and metal pipe.
