Sutton - 2 Flute Slot Drill - Regular

6mm R30 JIS HSS-Co.8
Stock Code:
SUT-E1000600
$46.99 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

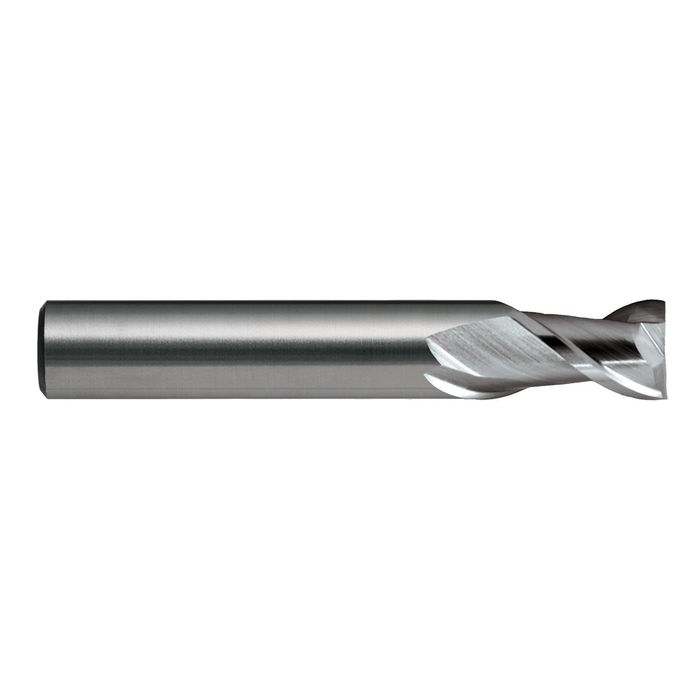

Sutton E1000600 6mm x 8mm Slot Drill 2 Flute - 8% Cobalt Steel - Regular

Sutton - 2 Flute Slot Drill - Regular

  • For precision milling of slots & cavities
  • For soft steels & non-ferrous material

Features

  • 2 Flute Slot Drill R30 N
  • Suitable for materials up to 1000 N/mm2

Specifications

  • Designation: N
  • Material: High Speed Steel Cobalt-8
  • Finish: Bright
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: e8
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Standard: JIS
  • Cutting Tip (mm) 6
  • Overall Length (mm) 60
  • Shank (mm) 8
  • Flute Length (mm) 15
  • Group Code E100

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
