Sutton - Straight Flute Tap - Intermediate

Metric M16 x 2 HSS
Stock Code:
SUT-T3851600
$77.44 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

Sutton T3851600 Metric M16 x 2 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - M - Intermediate

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Intermediate

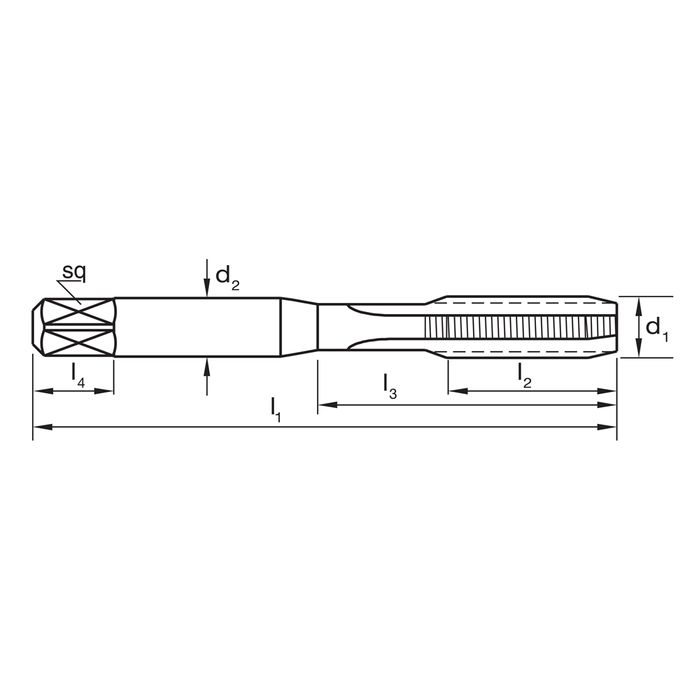

  • Shank (mm) 5
  • L1 (mm) 102
  • Pitch (mm) 2
  • Drill Size (mm) 14
  • L2 (mm) 32
  • Sq 10
  • Diameter (metric) M16
  • L4 (mm) 13
  • z 4

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
