Sutton - Straight Flute Tap - Intermediate

BSPF G 3/4 x 14 HSS
Stock Code:
SUT-T4802644
$164.01 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

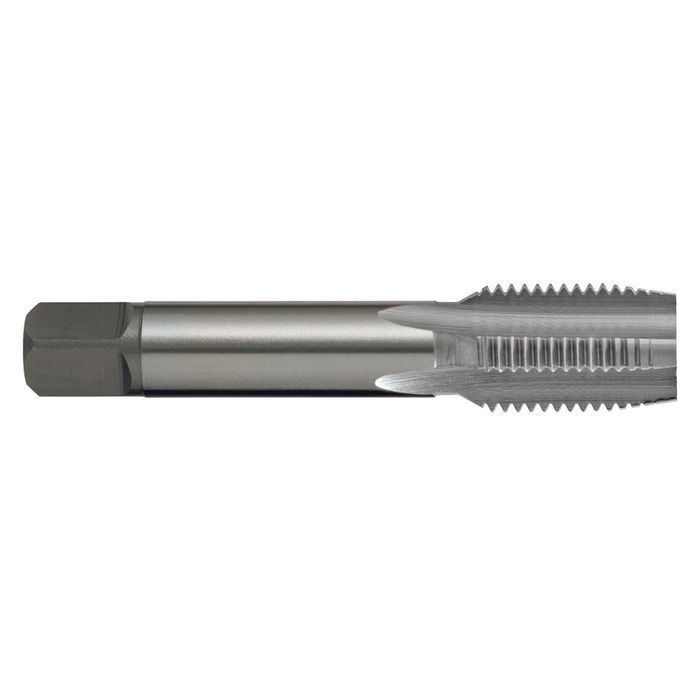

Sutton T4802644 G-BSPF G 3/4 x 14 Straight Flute Tap - Intermediate - HSS

Suttons Straight Flute Taps - G (BSPF) - Intermediate

  • General Purpose use for materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Intermediate
  • TPI14
  • Shank (mm) 20
  • L1 (mm) 96
  • Diameter G3/4
  • Drill Size (mm) 24.5
  • L2 (mm) 28
  • Sq16
  • z4
  • L4 (mm) 20

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
