Sutton - Straight Flute Tap - Bottoming

BSPF G 1/8 x 28 HSS
Stock Code:
SUT-T4810973
$39.20 incl GST

Stock Locations

  • Ballarat:
    2 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

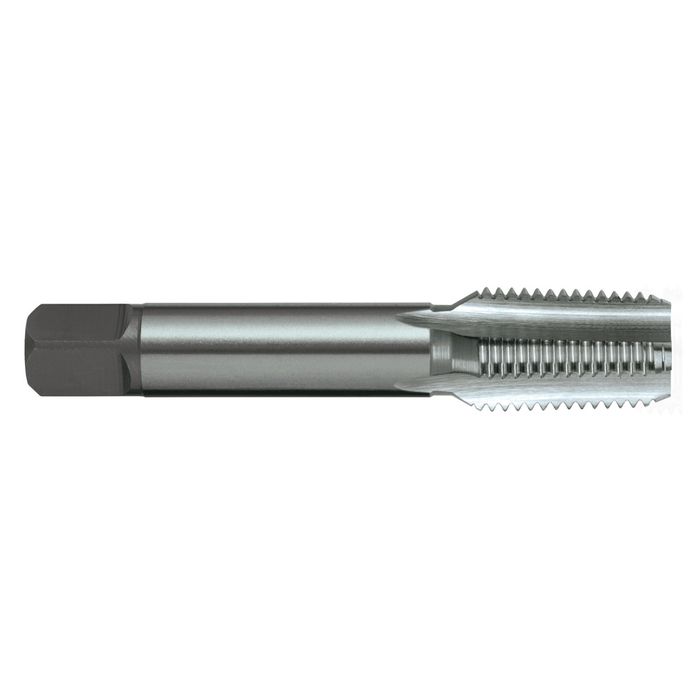

Sutton T4810973 G-BSPF G 1/8 x 28 Straight Flute Tap - Bottoming - HSS

Suttons Straight Flute Taps - G (BSPF) - Bottoming

  • General Purpose use for materials up to approx. 1000 N/mm2
  • Through & blind holes
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reduced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO2284
  • Thread Form: ISO G Parallel Series 55° (G-BSPF)
  • Nut Tolerance: Z3
  • Lead: Bottoming
  • TPI28

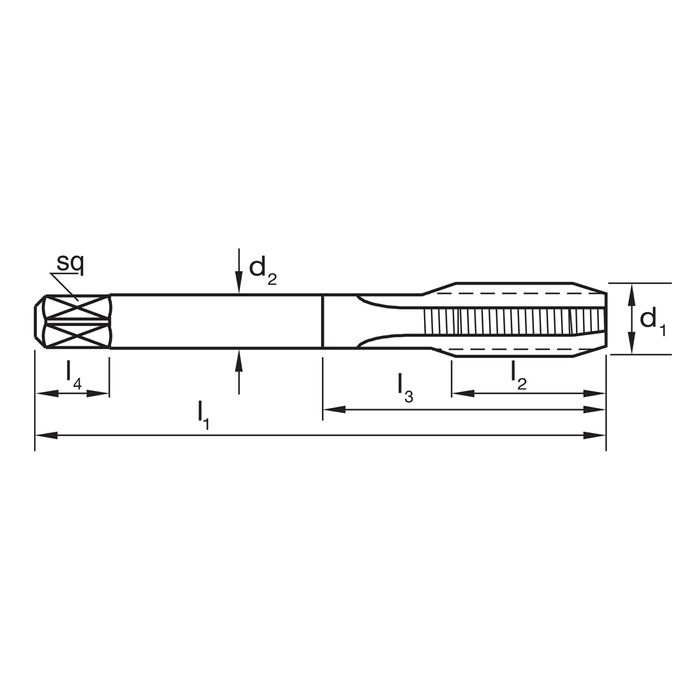

  • Shank (mm) 8
  • L1 (mm) 59
  • Diameter G1/8
  • Drill Size (mm) 8.8
  • L2 (mm) 15
  • Square Size (mm) 6.3
  • z4
  • L4 (mm) 9

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed
