Sutton - 2 Flute Slot Drill - Regular - Tecline

1/8 R30 VHM
Stock Code:
SUT-E3040318
$32.25 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

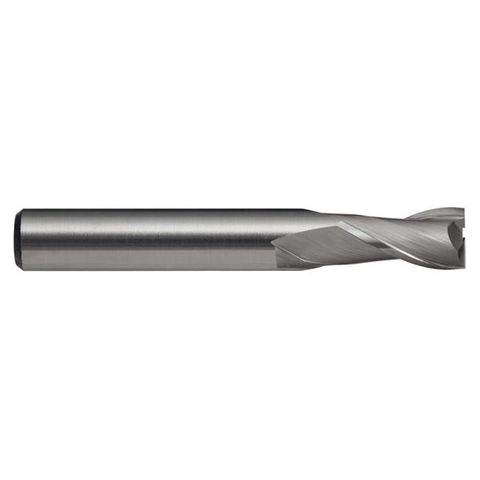

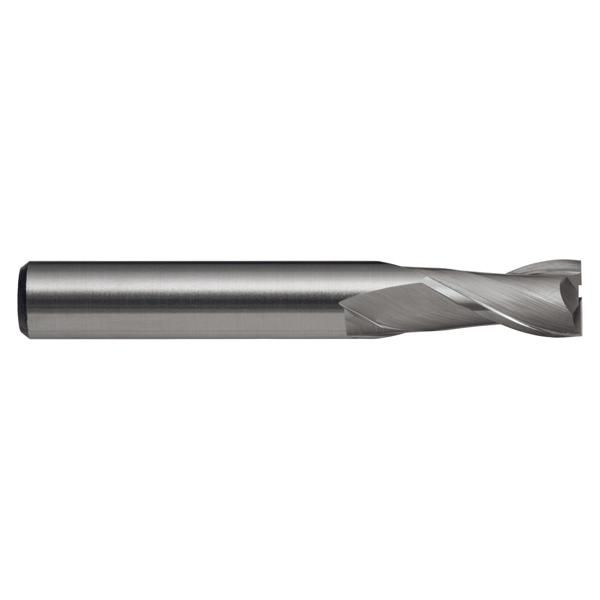

Sutton E3040318 1/8" x 1/8" 2 Flute Slot Drill - Carbide VHM - Regular

Sutton - 2 Flute Slot Drill - Regular - Tecline

  • For precision finish milling of slots & cavities

Features

  • Slot Drill, Regular, 2 Flute, R30
  • Suitable for materials up to 1600 N/mm2

Specifications

  • Designation: N
  • Material: VHM
  • Finish: Bright
  • Shank Form: HA
  • Helix Angle: R30
  • Point Tolerance: h10
  • Shank Tolerance: h6
  • Point Form: Square End
  • Type: N (finishing)
  • Rake Angle: 12
  • Standard: DIN6527L
  • Cutting Tip (inch) 1/8
  • Overall Length (inch) 1 1/2
  • Shank (inch) 1/8
  • Flute Length (inch) 1/2

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 250 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.75 %C)- 270 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
