Sutton - Jobber Drill - Blue Bullet

13/64 ANSI B94-11 HSS Pack of 10
Stock Code:
SUT-D1020516
$54.34 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

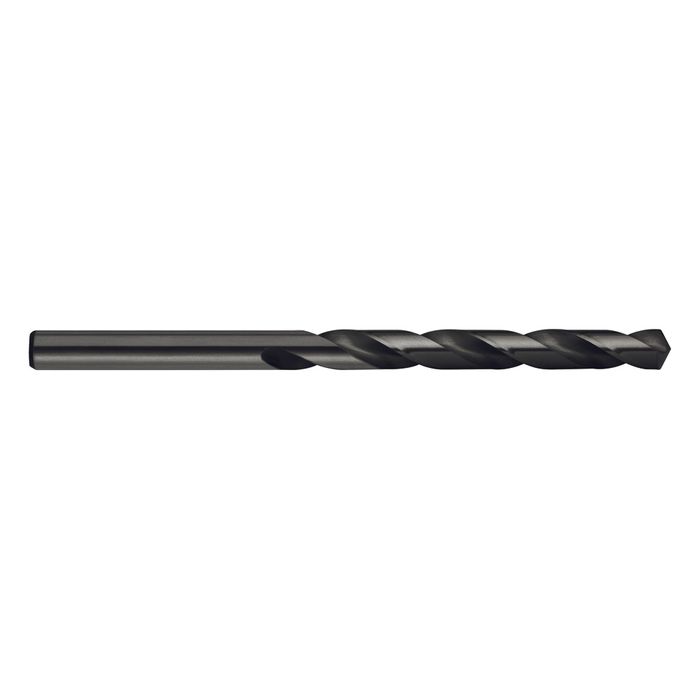

Sutton D1020516 13/64" Jobber Drill Bit Blue Bullet - HSS - Pack of 10

Sutton Tools Jobber Drill Bits - Blue Bullet

Sutton Tools Blue Bullet jobber drills are a general purpose drill bit designed for machine and hand held drilling ferrous metals. The blue finish reduces chip build up on the cutting edge and is a better choice when drilling ferrous materials.

Features

  • 118° web thinned point reduces the amount of thrust required
  • Precision engineered parallel shank for accurate hole size
  • Made from M2 High Speed Steel (HSS) offering the best combination of strength, heat & wear resistance
  • Blue surface finish for ferrous applications. The steam oxide finish prevents chip build-up on the cutting edges and reduces cutting friction, especially in low carbon steels

Specifications

  • Designation: N
  • Material: HSS
  • Finish: Blu
  • Max Cut Depth: 5 x D
  • Shank Form: A
  • Helix Angle: R30
  • Point Tolerance: h8
  • Point Angle: 118°
  • Point Form: Form A
  • Standard: ANSI B94-11 / DIN338

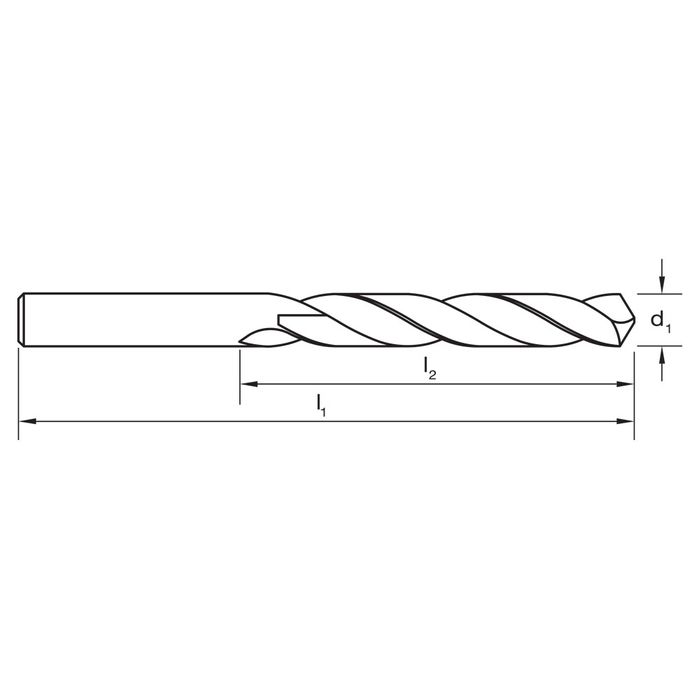

  • Thread Diameter (inch) 13/64
  • Overall Length (mm) 92
  • Flute Length (mm) 62

Applications

  • ISO: H
  • VDI: 41
  • Description: Cast Iron
  • Condition: Hardened and Tempered
  • Hardness: 55HRC
