Sutton - Jobber Drill Set - Inox

25 Piece Metric 1.0mm - 13.0mm
Stock Code:
SUT-D180SM3
$396.35 incl GST

Stock Locations

  • Ballarat:
    1 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

DESCRIPTION

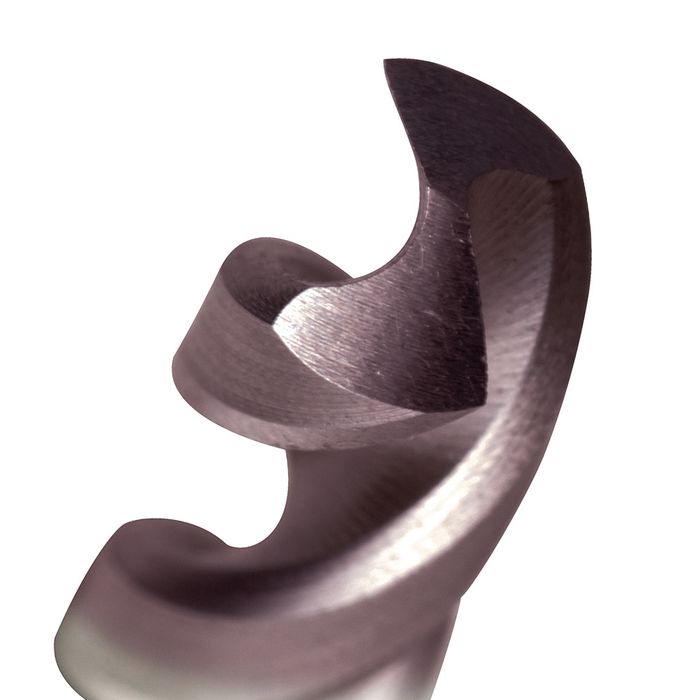

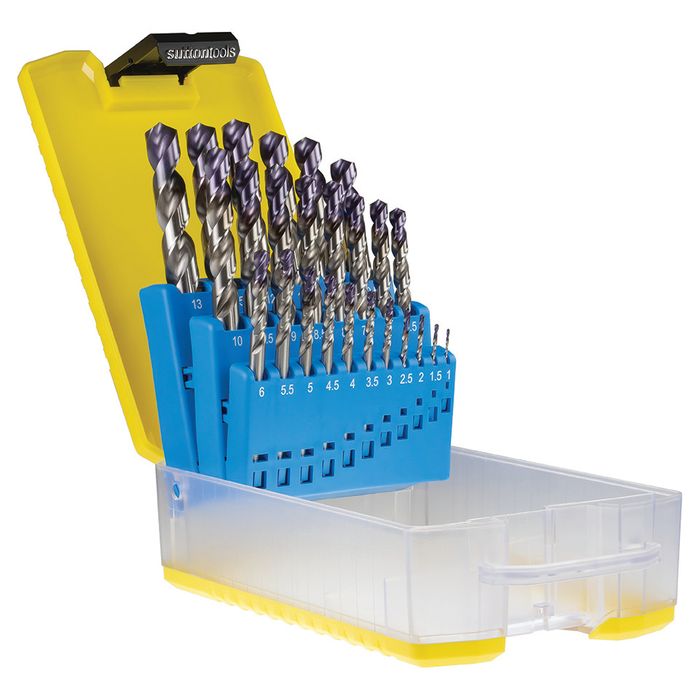

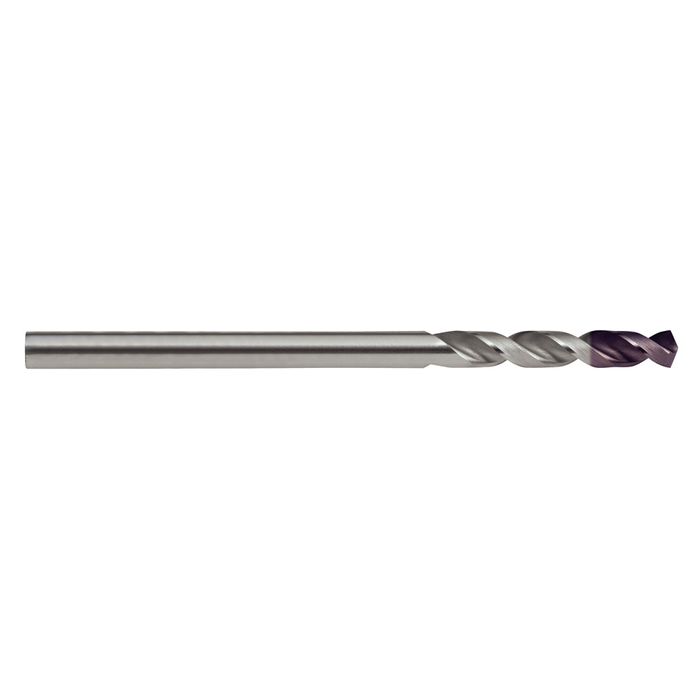

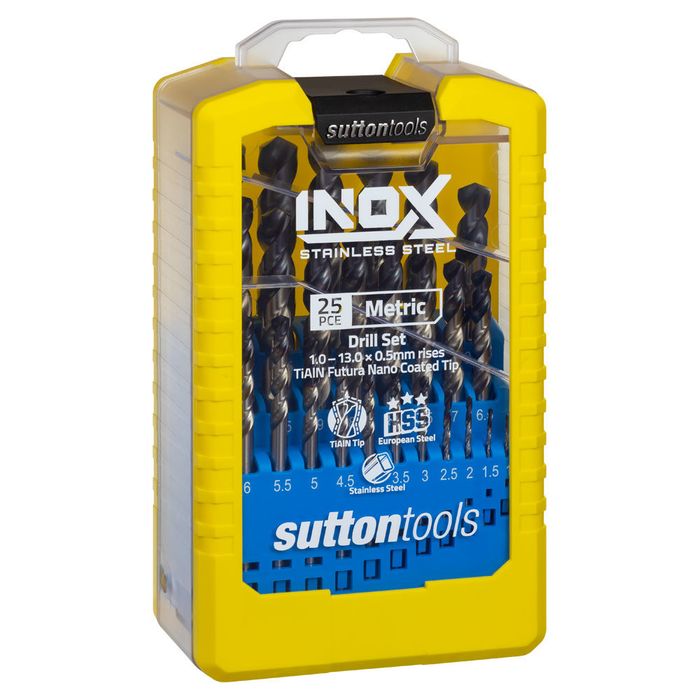

Sutton - Jobber Drill Set - Inox

25 Piece Metric 1.0mm - 13.0mm

  • Short flute length jobber drill
  • Cost effective solution for austenitic stainless steels and soft materials
  • Unique stepped core for excellent penetration
  • TiAlN tip for good wear resistance

Dimensions

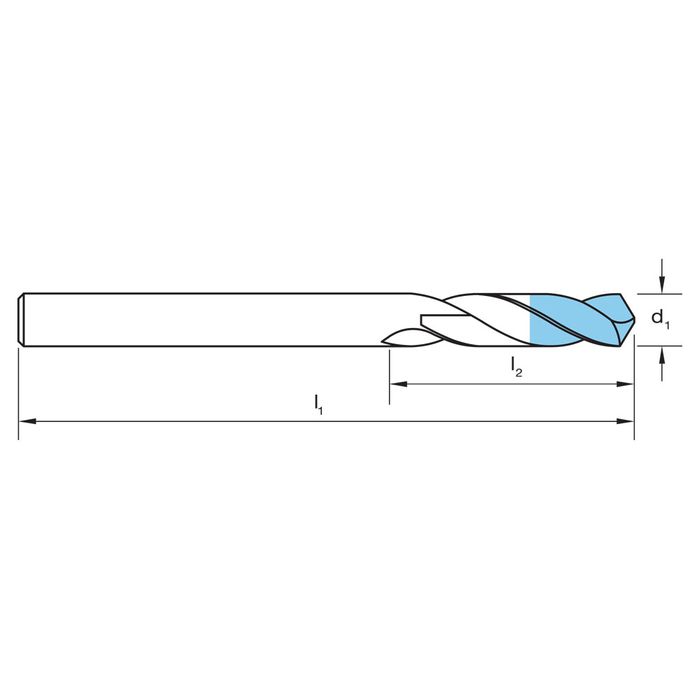

  • d1 (mm): 1.0-13.0 x 0.5
  • Pack Quantity: 25

Features

  • Jobber Drill R40 InOx unique stepped core
  • For excellent penetration tiAlN tip
  • For good wear resistance
  • Inox drill bits have a fast spiral, short flute and unique stepped core design providing a smooth and effortless cutting action
  • Inox drill bits have been independently tested to achieve 70% more tool life in stainless steel compared to standard drill bits

Specifications

  • Designation: VA
  • Material: High Speed Steel
  • Finish: TiAIN Tip
  • Maximum Cut Depth: 3XD
  • Shank Form: A
  • Helix Angle: R40
  • X: als
  • Point Tolerance: h8
  • Point Angle: 130°
  • Point Form: Form B
  • Cutting Edges: ul
  • Standard: DIN 338

Applications

  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.15 %C)- 125 HB
  • Optimal for Steel - Non-alloy, cast & free cutting (~ 0.45 %C)- 190 HB
  • Optimal for Steel - Low alloy & cast < 5% of alloying elements- 180 HB
  • Optimal for Stainless Steel – Austenitic- 180 HB
  • Optimal for Stainless Steel – Duplex- 250 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Non Heat Treatable – 60 HB
  • Optimal for Aluminum & Magnesium, wrought alloy - Heat Treatable – 100 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Non Heat Treatable – 75 HB
  • Optimal for Aluminum & Magnesium, cast alloy ≤12% Si - Heat Treatable – 90 HB
