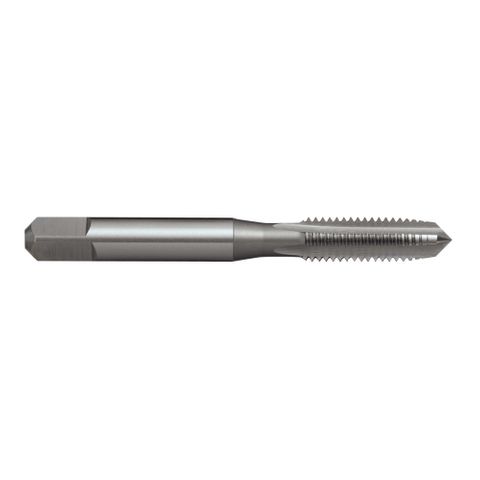

Sutton - Straight Flute Tap - Intermediate

Metric M2 x 0.4 HSS
Stock Code:
SUT-T3850200
$36.21 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

Features

  • General purpose use
  • Suitable for materials up to 1000N/mm2
  • Suitable for both hand and machine operations
  • Depths up to approx. 1 x d1

Specifications

  • Designation: N (for normal general purpose type materials)
  • Material: High Speed Steel (HSS)
  • Finish: Bright
  • Max Cut Depth: 1xD
  • Shank Form: Reinforced Shank (with square drive)
  • X: als
  • Type: Straight Flute
  • Standard: ISO529
  • Thread Form: ISO Metric Coarse (M)
  • Nut Tolerance: ISO 2 / 6H
  • Lead: Intermediate

Applications

  • Steel - Non-alloy, cast & free cutting (~ 0.15 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Annealed
  • Steel - Non-alloy, cast & free cutting (~ 0.45 %C): Quenched & Tempered
  • Steel - Non-alloy, cast & free cutting (~ 0.75 %C): Annealed
  • Steel - Low alloy & cast < 5% of alloying elements: Annealed

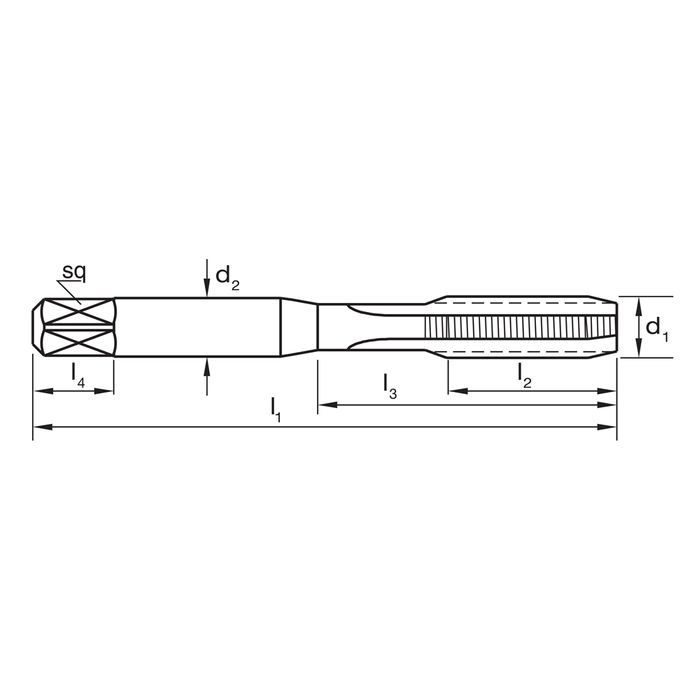

Specifications

  • Model Number T3850200
  • Barcode Number 9311963013251
  • Shank (mm) 2.5
  • L1 (mm) 41
  • Pitch (mm) 0.4
  • Sq2
  • Diameter (metric) M2
  • L4 (mm)4
  • Z3
  • Drill Size (mm) 1.6
  • L2 (mm)8
  • Group Code T385
  • Thread Form ISO Metric Coarse (M)
  • System of Measurement ISO529
  • MaterialHigh Speed Steel (HSS)
  • Finish Bright
  • Lead Intermediate
  • Application N (for normal general purpose type materials)
  • Tap Type Straight Flute
  • Shank Form Reinforced Shank (with square drive)
  • Nut Tolerance ISO 2 / 6H
  • Max Cut Depth 1xD

Details

  • Brand:
    SUTTON
