Richmond Standard Jockey Wheel 400KG

Swing Up Clamp 200MM Wheel

Stock Code:

S8026

$149.60 incl GST

Stock Locations

Ballarat:

3 In Stock
Shepparton:

Special Order

Make an Enquiry

Add to Favourites

Description

DESCRIPTION

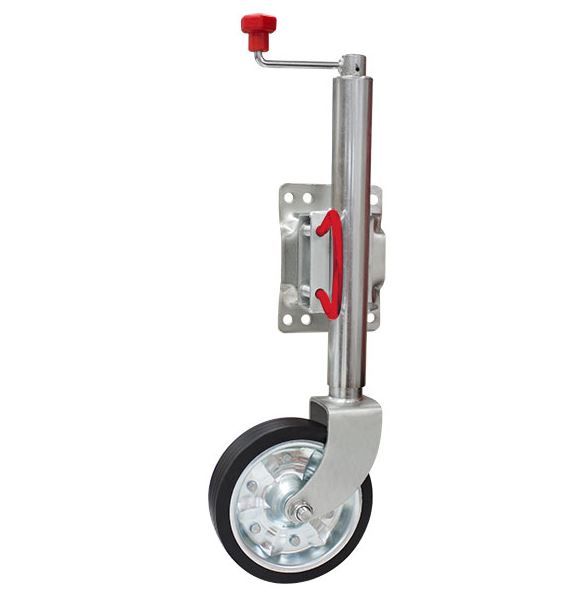

200mm Swing Type Jockey Wheel (S8026)

Width: 55mm
Wheel Type: Rubber Tyred
Static Load Capacity: 400kg (when at lowest setting on flat/level surface)
Raised Height: 890mm
Lowered Height: 600mm
Part Number: S8026

The S8026 is a swing type jockey wheel, ideal for use on caravans, campers, boat trailers and other trailers used for transporting goods for leisure or business.

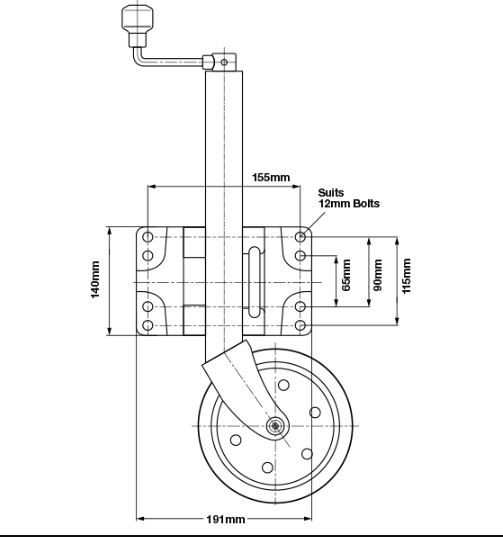

The S8026 features a new heavy duty plate assembly, designed to swing up and out of the way. See example of heavy duty plate assembly below.

Important Note: When moving equipment, best performance is achieved with jockey wheel being at a lowest position. Moving equipment with jockey wheel in a high position is not safe or advised. All load capacities are based on smooth concrete or asphalt surfaces.

Richmond’s new range of jockey wheels are ideal for use on trailers, caravans, campers, boat trailers, and various other trailers. We offer two different mounting types – clamp and swing up – and three different wheel sizes. With load capacities of up to 400kgs, Richmond’s jockey wheels are a high-quality and economical solution.They’re strong, high-quality, and reliable. Jockey wheels can be used to lower your trailer or caravan onto a tow ball, or to move your trailer around by hand in small or tight spaces.

Our swing up jockey wheels feature a brand new heavy duty plate assembly for even better performance. The swing up mechanism allows for your jockey wheel to swing up and out of the way when not in use, and is our most popular choice. Our jockey wheels can be raised and lowered to a variety of different heights to suit every application.
