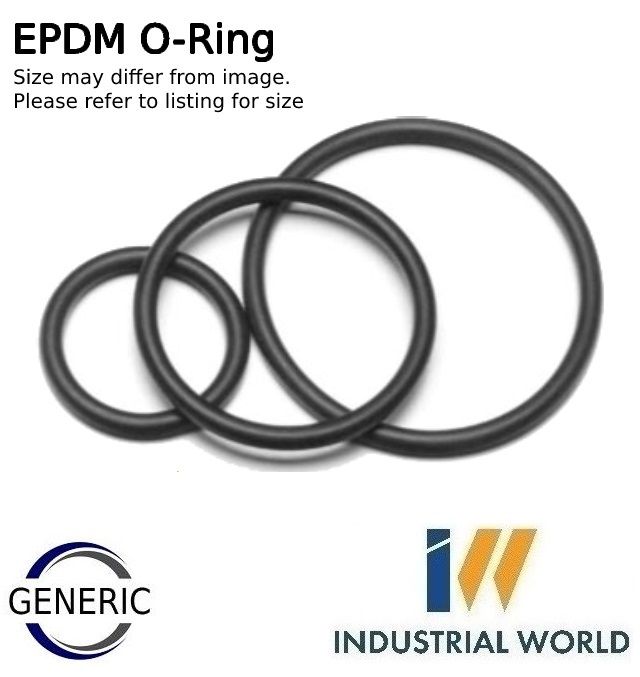

O-Ring Imperial 5/16 x 1/16

Stock Code:
BS011_EPDM
$0.48 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
5 On Order
Make an Enquiry
Add to Favourites

Description

O-rings are used to block a path which may otherwise allow a liquid or a gas to escape. The o ring is placed into a groove to secure them in place, and then compressed between two surfaces. When the system comes under pressure, the o ring is squeezed against the opposite wall of the groove, maintaining a perfect seal even under very high or low pressures.

We stock them in 4 types:

NBR: Standard use. Common in automotive parts due to fuel/oil/etc resistance that ordinary rubber does not have. Can be used for moderate temperatures (-40°C to 121°C)

Viton: Great for high temp (-29°C to 204°C). In general, this material is compatible with hydrocarbons, but incompatible with acetones, ketones, steam, hot water, and organic acids.

Silicone: Generally non-reactive, stable, and resistant to extreme environments. It can be used in extreme temperatures (-60°C to 232°C) while still maintaining its useful properties. Silicone’s temperature tolerance helps it avoid brittleness in freezing conditions and maintain its dimensional tolerance at extremely high temps.

EPDM: EPDM rubber is suitable for used in extreme cold temperatures and is resistant to steam (-51°C to 150°C). Also used for and outdoor applications, hot water, direct sunlight/UV, silicone oils and greases, dilute acids, ketones, alkalis, and automotive brake fluids. It also makes an excellent electrical insulator.

They also come in different hardnesses:

Standard NBR and EPDM is 70, and 90 is harder

Standard Viton is 75, and 90 is harder

Standard Silicone is 70, and 80 is harder



Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    7.65 mm (5/16)
  • Material:
    EPDM
  • Width:
    1.78 mm (1/16)
  • Brand:
    GENERIC
  • Metric/Imperial:
    Imperial
