SKF - Spherical Roller Bearing Cylindrical Bore

180 x 280 x 74
Stock Code:
23036-2CS5-VT143_SKF
$2,031.06 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

23036-2CS5-VT143

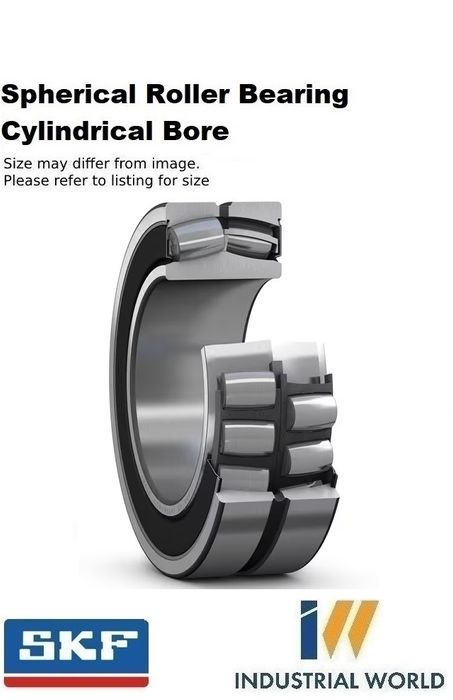

SKF - Spherical Roller Bearing Cylindrical Bore
180.00 mm ID x 280.00 mm OD x 74.00 mm Width

Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life.

A spherical roller bearing is a rolling-element bearing that consists of a floating spherical guide ring, and self correction rollers around an inner ring. Due to its design, this allows rotation with low friction, and permits angular misalignment.

SKF invented this bearing type in 1919, and their range is the widest in the industry today – both open and sealed. Our catalog includes spherical roller bearings designed for many applications such as:
• Wind turbine main shafts
• Continuous casters
• Vibratory applications
• High-speed applications


Dimensions

Bore diameter180 mm
Outside diameter280 mm
Width74 mm

Performance

Basic dynamic load rating884 kN
Basic static load rating1 270 kN
Limiting speed560 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSheet metal
Radial internal clearanceCN
Tolerance classNormal
Tolerance class for dimensionsNormal
Tolerance class for run-outP5
SealingSeal on both sides
Sealing typeContact
LubricantGrease
Relubrication featureWith
Candidate for remanufacturingYes

Logistics

Product net weight16.4 kg
eClass code23-05-09-11
UNSPSC code31171510


Click here for catalogue information

View product table

Bearings can differ in very slight ways, and so there are a lot of codes to decipher what a bearing specifically does just by its product code. The PDF below is taken from the SKF bearing catalog here and can help you to find the right bearing for you.

Product Guide Attached.

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    180 mm
  • Material:
    Chrome Steel
  • Width:
    74 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Size:
    23036
  • Diameter Outside:
    280 mm
