SKF - Spherical Thrust Bearing Cylindrical Bore

80 x 170 x 54
Stock Code:
29416E_SKF
$1,114.50 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
1 On Order
Make an Enquiry
Add to Favourites

Description

29416E

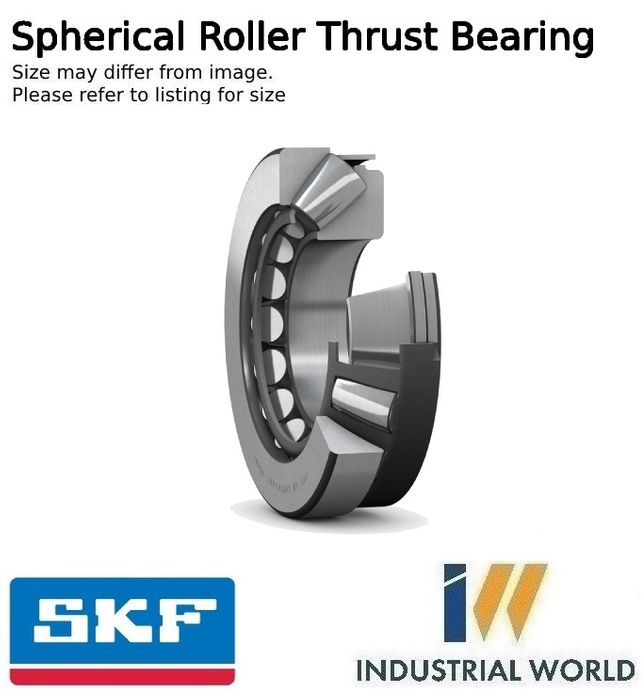

SKF - Spherical Thrust Bearing Cylindrical Bore
80.00 mm ID x 170.00 mm OD x 54.00 mm Width

A spherical roller thrust bearing is a rolling element bearing of thrust type that permits rotation with low friction, and permits angular misalignment. The bearing is designed to take radial loads, and heavy axial loads in one direction. Typically, these bearings support a rotating shaft in the bore of the shaft washer that may be misaligned in respect to the housing washer. The misalighnment is possible due to the spherical internal shape of the house washer.

Spherical roller thrust bearings are made up of a shaft washer (like an inner ring), a housing washer (like an outer ring), asymmetrical rollers and a cage. There are also bearing units available that can take axial loads in two directions. Spherical roller thrust bearings have the highest load rating density of all thrust bearings.

SKF invented this bearing type in 1939, and their range is the widest in the industry today – both open and sealed. Our catalog includes spherical roller bearings designed for many applications such as:
• Wind turbine main shafts
• Continuous casters
• Vibratory applications
• High-speed applications


Dimensions

Bore diameter80 mm
Outside diameter170 mm
Height54 mm

Performance

Basic dynamic load rating670 kN
Basic static load rating1 630 kN
Reference speed2 200 r/min
Limiting speed3 800 r/min
SKF performance classSKF Explorer

Properties

Locating feature, housing washerNone
Bore typeCylindrical
CageSheet metal
Tolerance classNormal

Logistics

Product net weight5.5 kg
eClass code23-05-11-03
UNSPSC code31171507

Click here for product information

View product table

Bearings can differ in very slight ways, and so there are a lot of codes to decipher what a bearing specifically does just by its product code. The PDF below is taken from the SKF bearing catalog here and can help you to find the right bearing for you.

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    80 mm
  • Material:
    Chrome Steel
  • Width:
    54 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    Standard Clearance
  • Type:
    Cylindrical Bore
  • Diameter Outside:
    170 mm
