SKF - Spherical Roller Bearing Cylindrical Bore

100 x 215 x 73
Stock Code:
22320E-JA-VA406_SKF
$1,006.21 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

22320E-JA-VA406

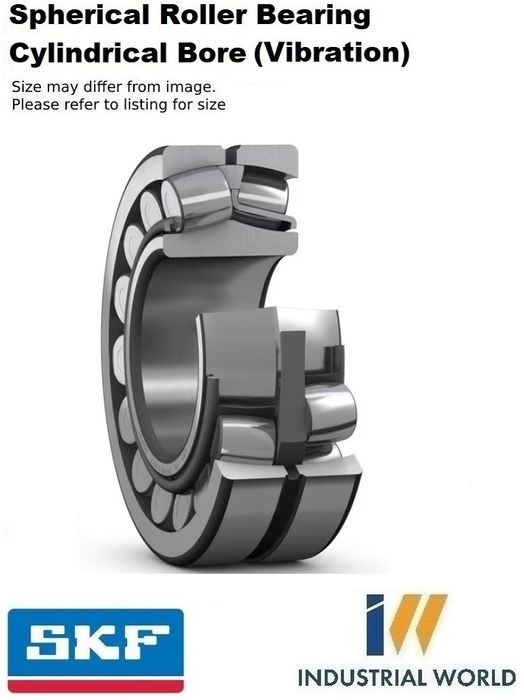

SKF - Spherical Roller Bearing Cylindrical Bore
100.00 mm ID x 215.00 mm OD x 73.00 mm Width

Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life.

A spherical roller bearing is a rolling-element bearing that consists of a floating spherical guide ring, and self correction rollers around an inner ring. Due to its design, this allows rotation with low friction, and permits angular misalignment.

SKF invented this bearing type in 1919, and their range is the widest in the industry today – both open and sealed. Our catalog includes spherical roller bearings designed for many applications such as:
• Wind turbine main shafts
• Continuous casters
• Vibratory applications
• High-speed applications


Dimensions

Bore diameter100 mm
Outside diameter215 mm
Width73 mm

Performance

Basic dynamic load rating847 kN
Basic static load rating950 kN
Reference speed2 400 r/min
Limiting speed3 000 r/min
SKF performance classSKF Explorer

Properties

Number of rows2
Locating feature, bearing outer ringWithout
Bore typeCylindrical
CageSurface-hardened sheet metal
Radial internal clearanceC4
Tolerance class for dimensionsNormal, bore to P5 and outside diameter P6
Tolerance class for run-outNormal
SealingWithout
LubricantNone
Relubrication featureWith

Logistics

Product net weight13.1 kg
eClass code23-05-09-11
UNSPSC code31171510


Click here for catalogue information

View product table

Product guide attached

Bearings can differ in very slight ways, and so there are a lot of codes to decipher what a bearing specifically does just by its product code. The PDF below is taken from the SKF bearing catalog here and can help you to find the right bearing for you.


Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    100 mm
  • Material:
    Chrome Steel
  • Width:
    73 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    C4 or Higer Clearance
  • Type:
    Cylindrical Bore
  • Size:
    22320
  • Diameter Outside:
    215 mm
  • Style:
    Vibrating Screens
