SKF - Spherical Roller Mounted Bearing Unit

Locating 55mm Shaft-Double Lip Seal
Stock Code:
SYNT55F_SKF
$547.14 incl GST

Stock Locations

  • Ballarat:
    3 In Stock
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

SYNT55F

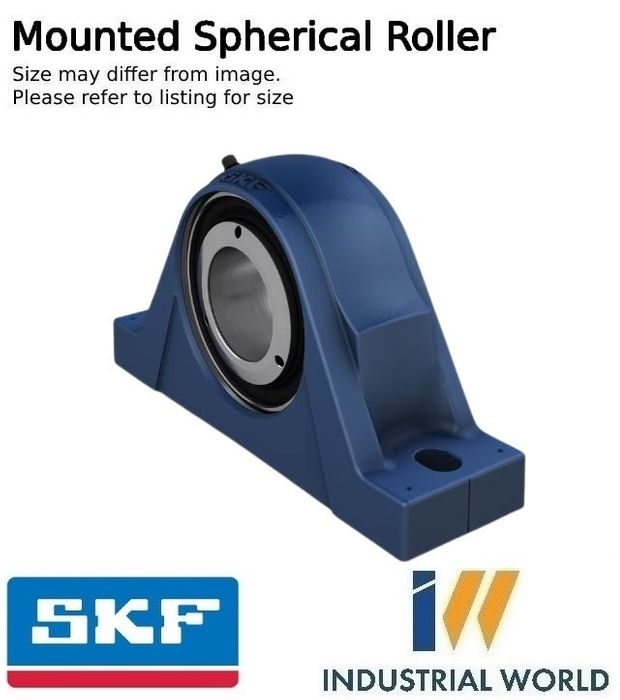

SKF - Spherical Roller Mounted Bearing Unit
Locating 55mm Shaft

Dealing with very heavy radial and axial loads in applications prone to misalignment or shaft deflections? Meet the challenge with spherical roller bearings, whose high load carrying capacity and ability to accommodate misalignment help you obtain low maintenance costs and long bearing service life.

A spherical roller bearing is a rolling-element bearing that consists of a floating spherical guide ring, and self correction rollers around an inner ring. Due to its design, this allows rotation with low friction, and permits angular misalignment.


Features and benefits of a Mounted Bearing Unit:

  • Ready to mount
  • Factory lubricated and sealed
  • Quick mounting on the support surface, quick locking on the shaft
  • Long service life with minimal or no maintenance
  • Variety of housing shapes, housing materials and locking methods
  • Concentric locking options for high speeds and low vibration
  • Easy to replace

Dimensions

Shaft diameter55 mm
Centre height (pillow block)70 mm
Housing overall width70 mm
Centre distance between bolt holes210 mm
Attachment bolt diameter16 mm
Bearing width, total66 mm

Performance

Basic dynamic load rating125 kN
Basic static load rating137 kN
Limiting speed3 100 r/min

Properties

Housing typePillow block
Number of bolt holes for fasteners2
Bearing insertSpherical roller bearing
Retaining feature, inner ringSKF ConCentra
Bearing positionLocating
Bore typeCylindrical
Material, housingCast iron
Material, bearingBearing steel
CoatingWithout
Bearing housing seal typeRadial lip seal
Sealing, unitOptional end cover
LubricantGrease
Relubrication holeWith
Grease fittingWith

Logistics

Product net weight6.14 kg
eClass code23-05-16-90
UNSPSC code31171537

Click here for product information

View product table

Bearings can differ in very slight ways, and so there are a lot of codes to decipher what a bearing specifically does just by its product code. The PDF below is taken from the SKF bearing catalog here and can help you to find the right bearing for you.

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    55 mm
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
