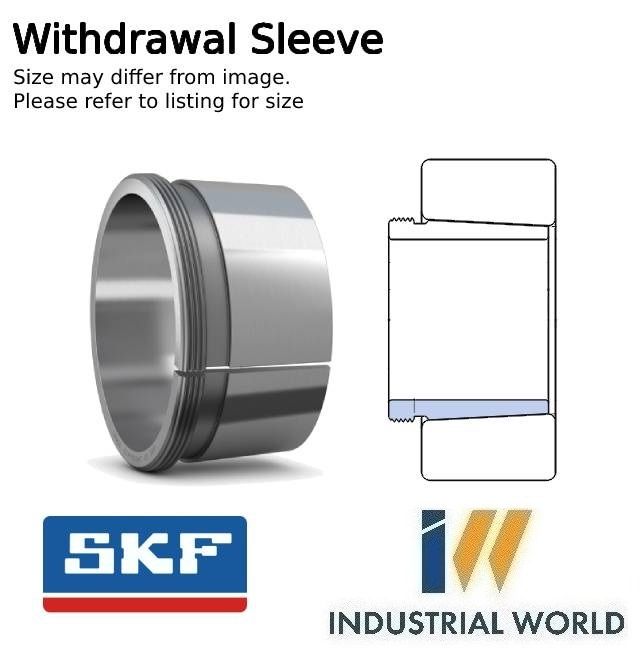

SKF- Withdrawal Sleeve 170 mm Bore

Withdrawal Nut = KM 38 M190x3
Stock Code:
AH2236G_SKF
$646.71 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

AH2236G

Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, which abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. KM or HM lock nuts with appropriate locking devices are suitable. Lock nuts are not supplied with the sleeve and must be purchased separately.

The original intention of the adapter sleeve and the withdrawal sleeve is to facilitate the installation and disassembly of the bearing, improve the efficiency, and reduce the maintenance cost of the machine. In basic terms, the adapter sleeve is used for easy installation, and the withdrawal sleeve is used for convenient removal. And the use of withdrawal sleeves and adapter sleeves can achieve the effect of adjusting the internal clearance.

Dimensions

Bore diameter170 mm
Width105 mm
Thread designationM 190x3

Properties

Taper1:12
Holes for oil injectionWithout

Logistics

Product net weight3.42 kg
eClass code23-11-07-05
UNSPSC code31163218

Click Here for Product Information

View product table

Product Guide Attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    170 mm
  • Thread Size:
    M190x3
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    AH22
  • Style:
    Withdrawal
