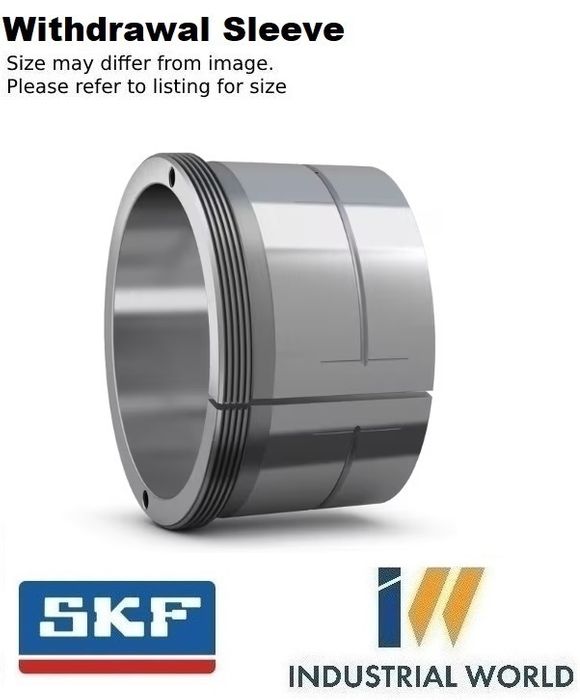

SKF- Withdrawal Sleeve 300 mm Bore With Oil Groove

Withdrawal Nut = HM3168 M340x5
Stock Code:
AOH3164G_SKF
$4,312.20 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

AOH3164G

Withdrawal sleeves can be used to mount bearings with a tapered bore onto the cylindrical seat of stepped shafts. The sleeve is pressed into the bore of the bearing inner ring, which abuts a shaft shoulder or similar fixed component. The sleeve is located on the shaft by a nut or an end plate. KM or HM lock nuts with appropriate locking devices are suitable. Lock nuts are not supplied with the sleeve and must be purchased separately.

The original intention of the adapter sleeve and the withdrawal sleeve is to facilitate the installation and disassembly of the bearing, improve the efficiency, and reduce the maintenance cost of the machine. In basic terms, the adapter sleeve is used for easy installation, and the withdrawal sleeve is used for convenient removal. And the use of withdrawal sleeves and adapter sleeves can achieve the effect of adjusting the internal clearance.

Dimensions

Bore diameter300 mm
Width209 mm
Thread designationTr 340x5

Properties

Taper1:12
Holes for oil injectionWith

Logistics

Product net weight21.4 kg
eClass code23-11-07-05
UNSPSC code31163218

Click Here for Product Information

Product guide attached

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    300 mm
  • Thread Size:
    M340x5
  • Material:
    Chrome Steel
  • Brand:
    SKF
  • Metric/Imperial:
    Metric
  • Chain Series:
    AOH31
  • Style:
    Withdrawal
