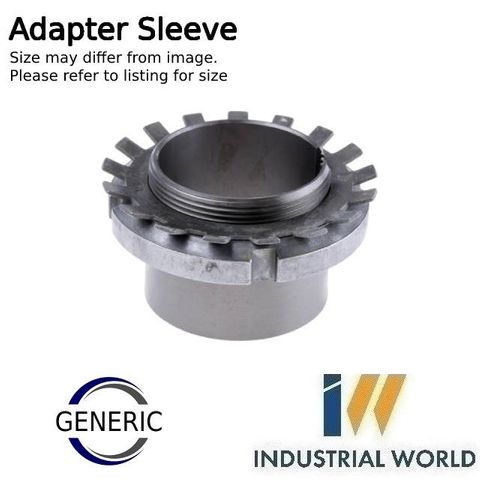

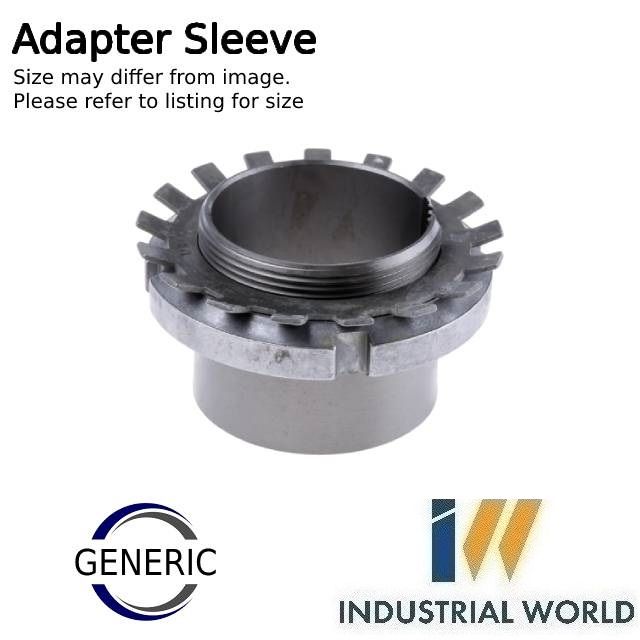

Economy - Adapter Sleeve 2-1/4 Bore

Nut = KM13 M65x2 Washer = MB13
Stock Code:
HE2313_ECO
$38.94 incl GST

Stock Locations

  • Ballarat:
    Special Order
  • Shepparton:
    Special Order
Make an Enquiry
Add to Favourites

Description

HE2313

• 2 1/4" Shaft Size
• Locknut KM13
• Lockwasher MB13
• M65X2 Thread Size
• 1:12: Taper

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical seat as they can be used on plain shafts or stepped shafts. Ballarat Bearings stocks many brands, from economical to premium sleeves in a variety of sizes.

They are easy to install and require no additional location on the shaft. When used on plain shafts, the bearing can be located at any position on the shaft. When used on stepped shafts together with an L-shaped spacer ring, the bearing can be accurately positioned axially, thereby facilitating bearing mounting and dismounting.

Our standard assortment of adapter sleeves includes:

  • metric adapter sleeves
    • with a metric bore
    • with an inch bore
  • inch adapter sleeves

The sleeves are slit and are supplied complete with a lock nut and locking device:

  • Smaller sizes have a nut and a lock washer.
  • Larger sizes have a nut and a locking clip or locking plate.

For larger sizes (bore diameter, d1 ≥ 1 060 mm) and variants not listed, contact us for assistance.

Click here for catalogue information

Still can't find what you're looking for? Our website is continuously being updated, so contact us by phone or email for anything else:

Phone:
03 5336 1111

Email:
online@iw.net.au

Details

  • Bore Size:
    57.15 mm (2-1/4)
  • Thread Size:
    M65x2
  • Material:
    Chrome Steel
  • Brand:
    GENERIC
  • Metric/Imperial:
    Imperial
  • Chain Series:
    HE23
  • Style:
    Standard
